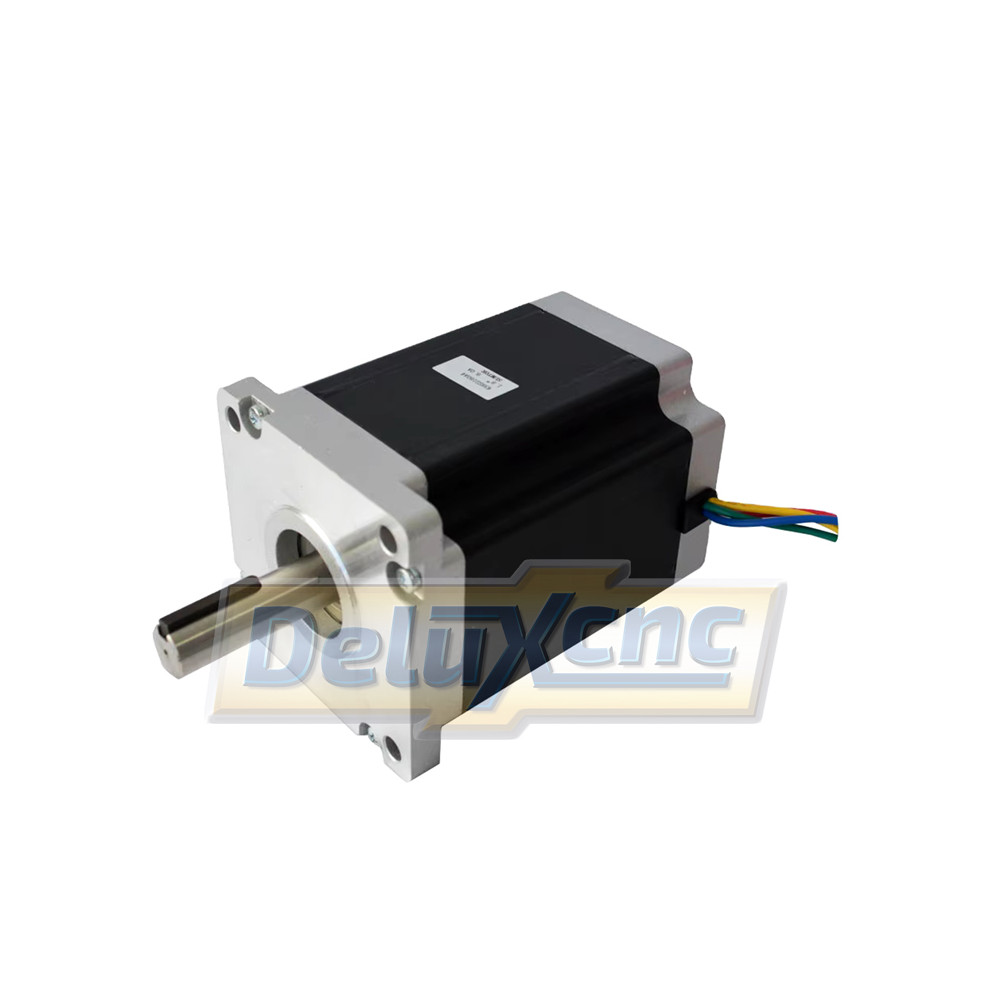

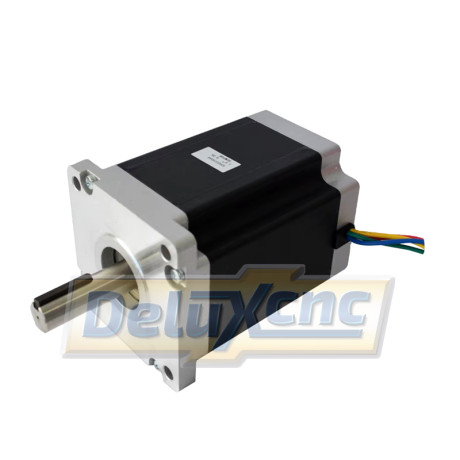

Model: 110HS2160A4
Number of phases: 2 Phases
Step angle: 1.8 °
Current: 6A
Moment: 21 N.M
Number of cables: 4 (A-,A+,B-,B+)
Weight: 9,6 kg
Stepper motor is known by its property to convert a train of input pulses into a precisely defined increment in the shaft position.
This is a high quality motor that can be used for a long time without stuck.
It has a quite stable performance during work and will not loss step.
Low noise and big torque, this is a great choice if you need a stepper motor.
Stepper motor can be widely used for 3D printer, CNC engraving machine, etc.
Data sheet
Number of phases: 2 Phases Step angle: 1.8 ° Current: 5.6A Rated voltage: 3.1V Resistance:...
Model: 110HT2069A3-MG + 3DM2080 Number of phases: 3 Phases Step angle: 1.2 ° Current: 6.9A...
Model: 2DM2260 Number of phases: 2 phases Current: 5,6A (max) Input voltage: AC 80-220V...
Model: 2DM2280 Number of phases: 2 phases Current: 8,2A (max) Input voltage: AC 220V Number...
Model: 110HS2160A4
Number of phases: 2 Phases
Step angle: 1.8 °
Current: 6A
Moment: 21 N.M
Number of cables: 4 (A-,A+,B-,B+)
Weight: 9,6 kg
