Number of phases: 2 Phases
Step angle: 1.8 °
Current: 5.6A
Rated voltage: 3.1V
Resistance: 0.55 Ohm / phase
Moment: 8.4 N.M
Detent torque: 12.5N.cm
Number of cables: 4 (red A +, green A-, yellow B +, blue B-)
Weight: 3.8 kg

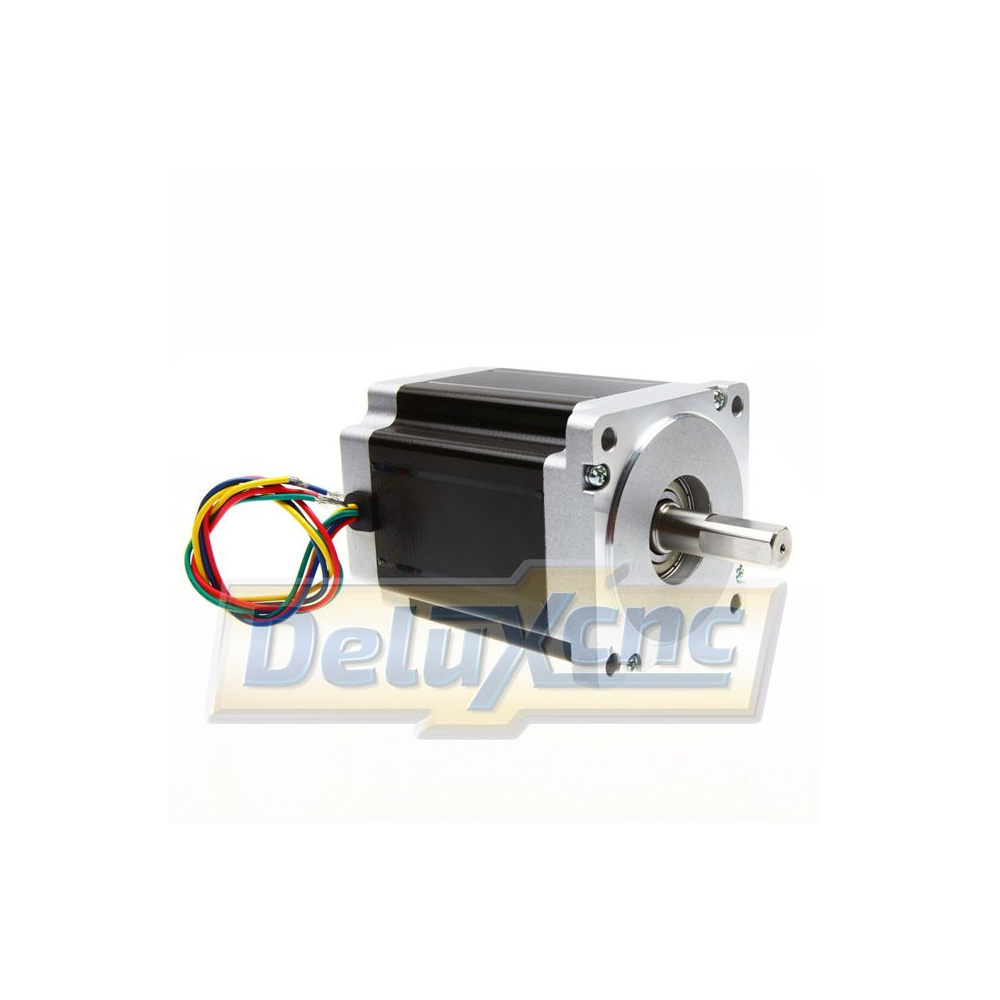

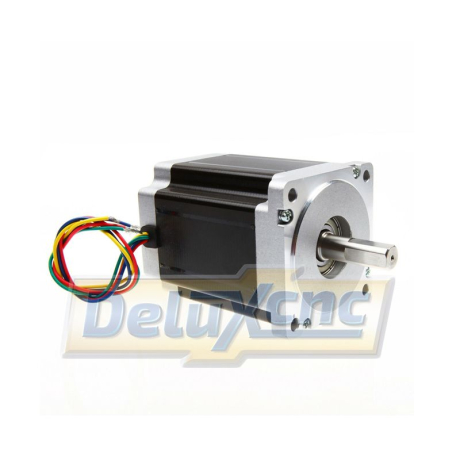

Stepper motor is known by its property to convert a train of input pulses into a precisely defined increment in the shaft position.
This is a high quality motor that can be used for a long time without stuck.
It has a quite stable performance during work and will not loss step.
Low noise and big torque, this is a great choice if you need a stepper motor.
Stepper motor can be widely used for 3D printer, CNC engraving machine, etc.
Data sheet
Package Included: 1 x 5 axis CNC Breakout Board with optical coupler for Stepper Motor Driver...
Package Included: 1 x 5 axis CNC Breakout Board with optical coupler for Stepper Motor Driver...
Specification: Input voltage: VAC: 20-80V VDC: 24-110V Maximum current: 8,4A peak (8 current...
Number of phases: 2 Phases
Step angle: 1.8 °
Current: 5.6A
Rated voltage: 3.1V
Resistance: 0.55 Ohm / phase
Moment: 8.4 N.M
Detent torque: 12.5N.cm
Number of cables: 4 (red A +, green A-, yellow B +, blue B-)
Weight: 3.8 kg
