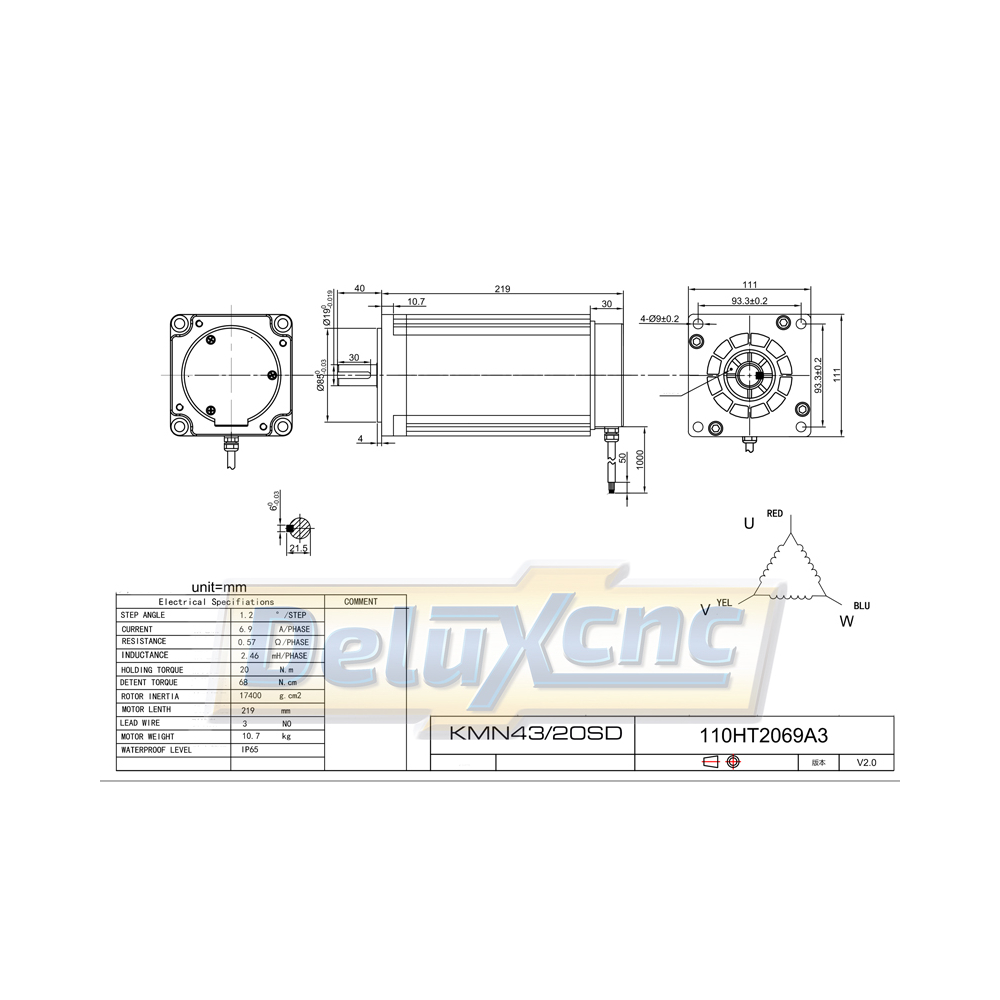

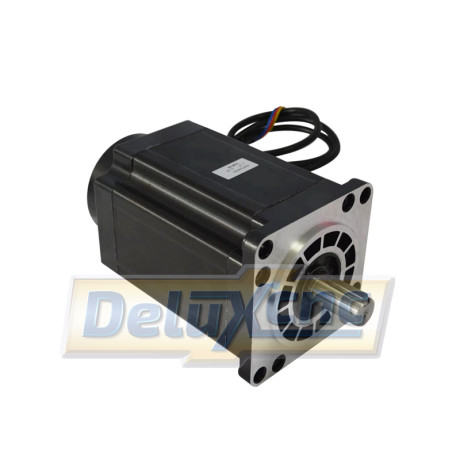

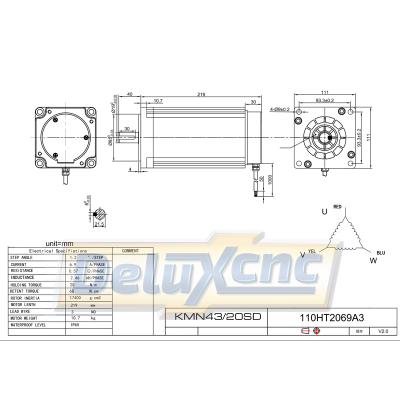

Model: 110HT2069A3-MG
Number of phases: 3 Phases
Step angle: 1.2 °
Current: 6.9A
Moment: 20 N.M
Number of cables: 3 (U, V, W)
Weight: 10,7 kg
Stepper motor is known by its property to convert a train of input pulses into a precisely defined increment in the shaft position.
This is a high quality motor that can be used for a long time without stuck.
It has a quite stable performance during work and will not loss step.
Low noise and big torque, this is a great choice if you need a stepper motor.
Stepper motor can be widely used for 3D printer, CNC engraving machine, etc.
Data sheet
Number of phases: 2 Phases Step angle: 1.8 ° Current: 5.6A Rated voltage: 3.1V Resistance:...
Model: 110HT2069A3-MG + 3DM2080 Number of phases: 3 Phases Step angle: 1.2 ° Current: 6.9A...
Model: 3DM2080 Number of phases: 3 phases Current: 8.2A (max) Input voltage: AC 230V Number...
Model: 3DM2270 Number of phases: 3 phases Current: 7A (max) Input voltage: AC 180-240V Number...
Model: 110HT2069A3-MG
Number of phases: 3 Phases
Step angle: 1.2 °
Current: 6.9A
Moment: 20 N.M
Number of cables: 3 (U, V, W)
Weight: 10,7 kg
