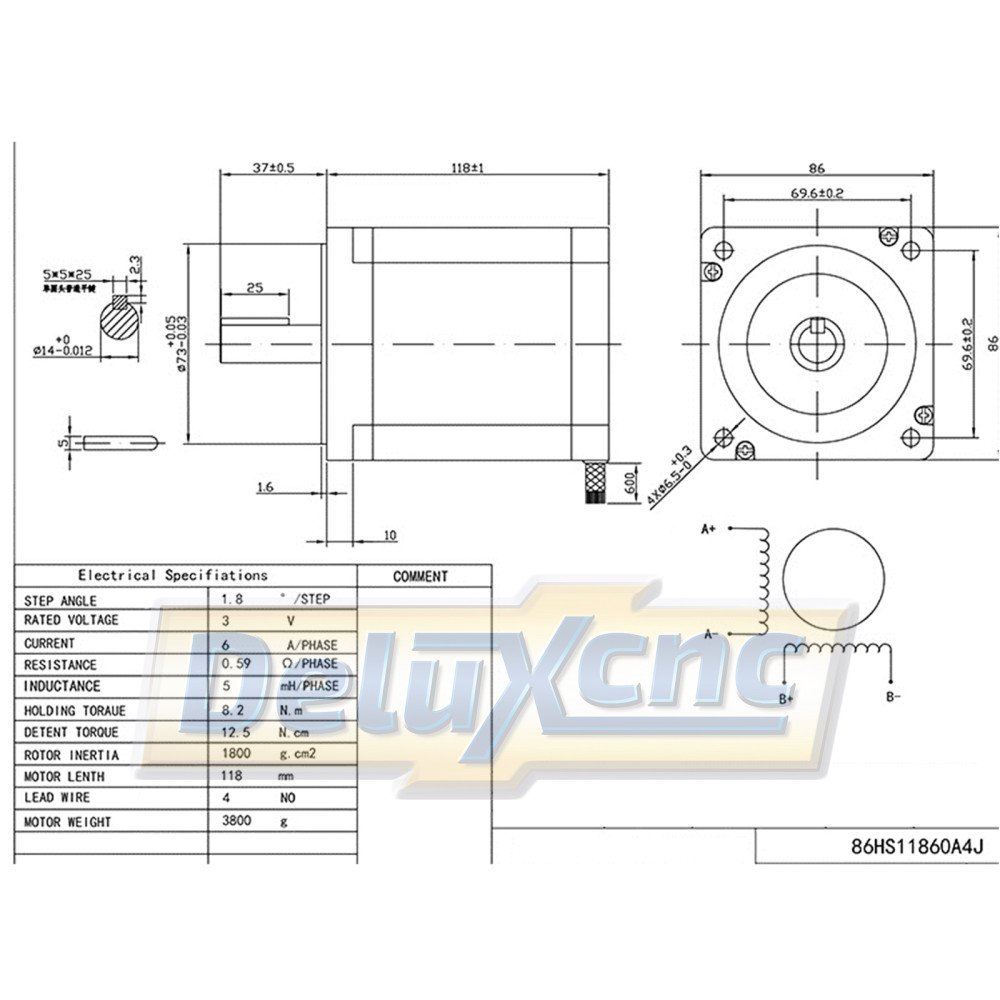

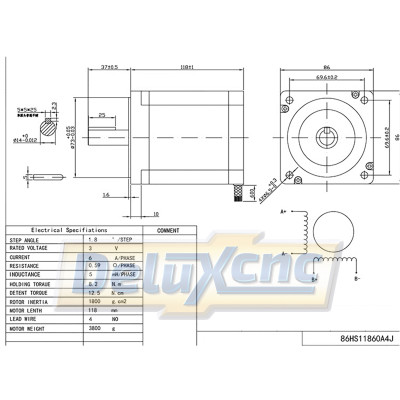

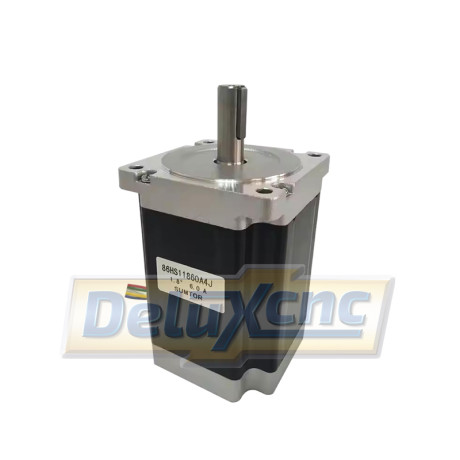

Stepper motor NEMA 34 8,2N.M
Model: 86HS11860A4J
Number of phases: 2
Step angle: 1.8°
Current: 6A
Nominal voltage: 3V
Resistance: 0.59 Ohm / phase
Moment: 8,2N.M
Number of cables: 4 (red A+, green A-, yellow B+, blue B-)
Weight: 3,8 kg
Stepper motor is known by its property to convert a train of input pulses into a precisely defined increment in the shaft position.
This is a high quality motor that can be used for a long time without stuck.
It has a quite stable performance during work and will not loss step.
Low noise and big torque, this is a great choice if you need a stepper motor.
Stepper motor can be widely used for 3D printer, CNC engraving machine, etc.
VR1P-KMN34/082
17 Items
Data sheet
- Step angle
- 1.8°
- Moment
- 8.2 NM
- Flange
- NEMA 34
- Rated current
- 6 A
- Shaft diameter
- 14 mm
