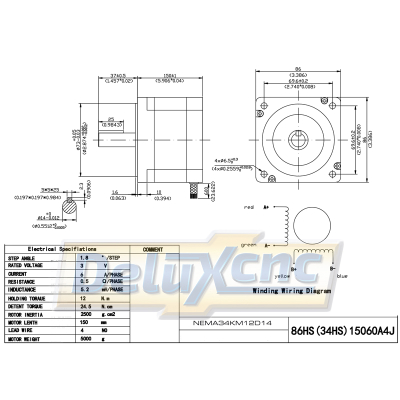

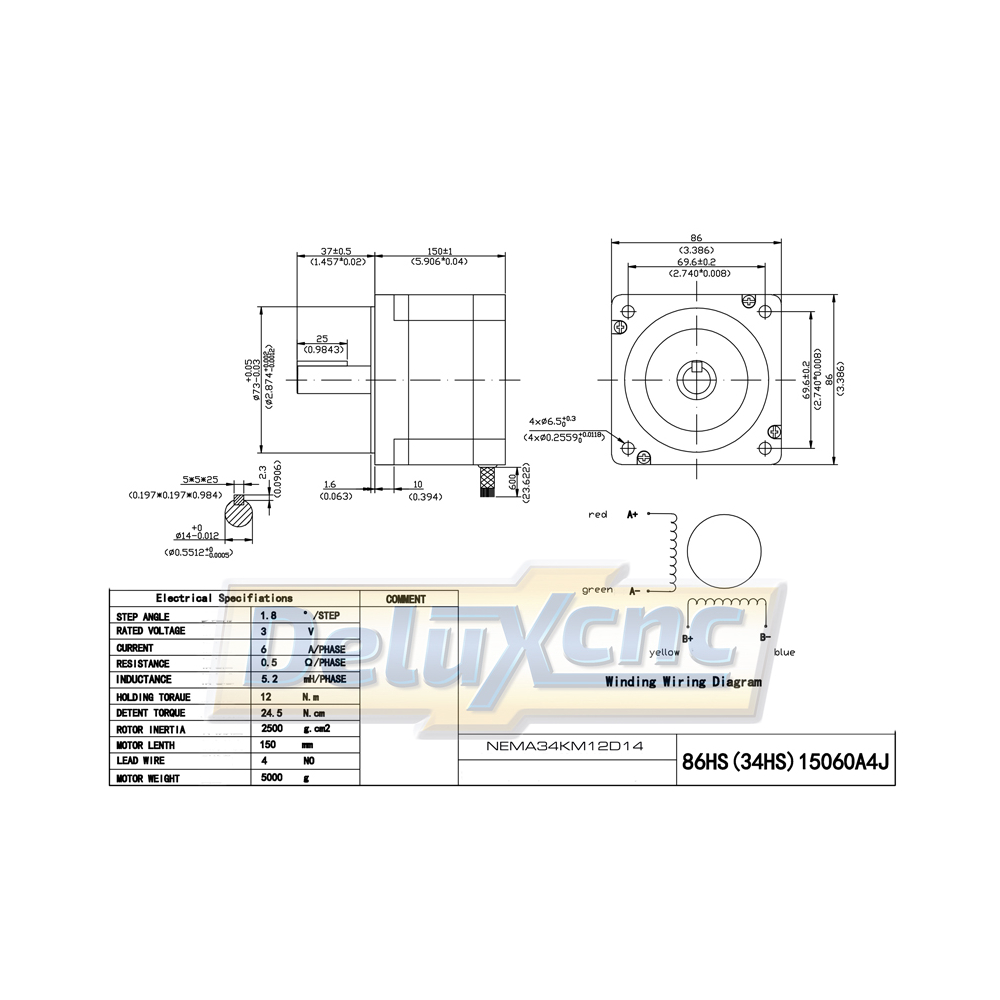

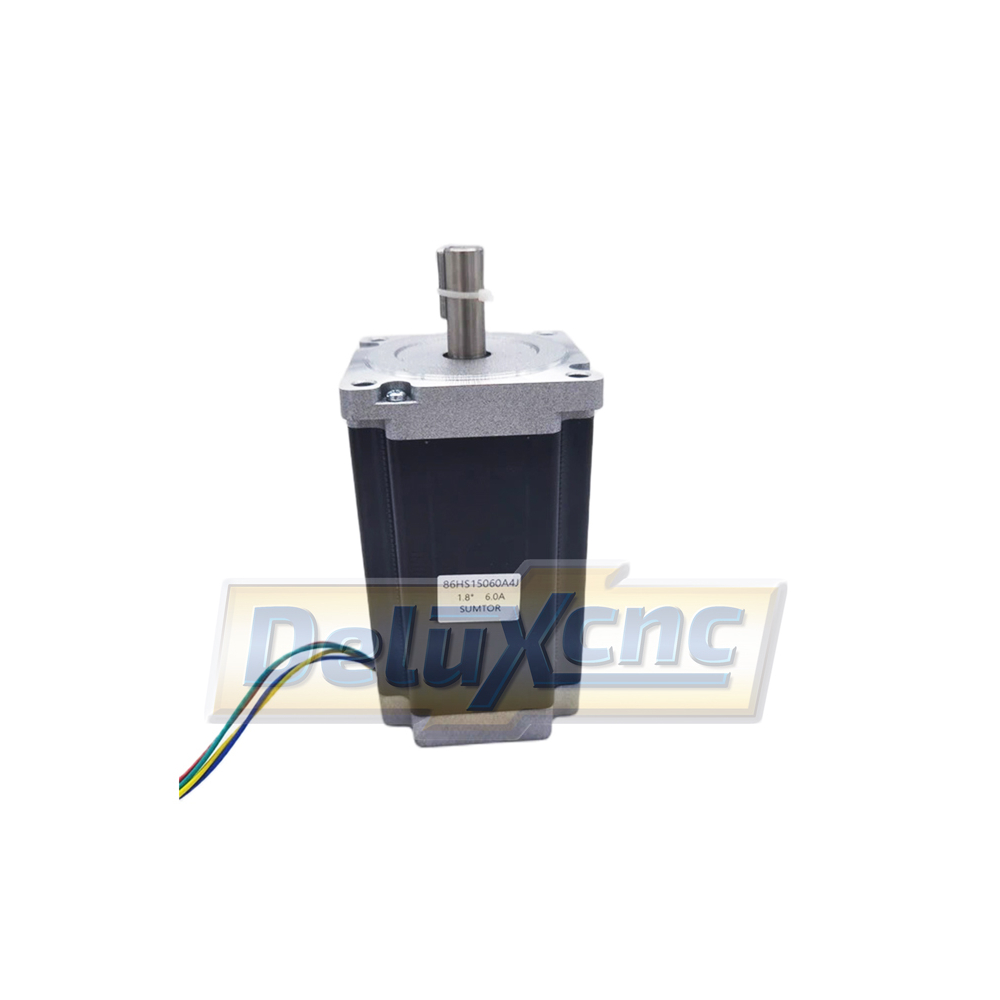

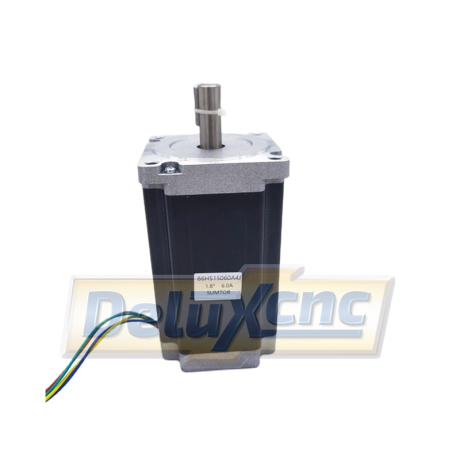

Model: 86HS15060A4J
Number of phases: 2
Step angle: 1.8 °
Current: 6A
Torque: 12Nm
Number of cables: 4 (red A+, green A-, yellow B+, blue B-)
Weight: 5 kg
Stepper motor is known by its property to convert a train of input pulses into a precisely defined increment in the shaft position.
This is a high quality motor that can be used for a long time without stuck.
It has a quite stable performance during work and will not loss step.
Low noise and big torque, this is a great choice if you need a stepper motor.
Stepper motor can be widely used for 3D printer, CNC engraving machine, etc.
Data sheet
