Specification:

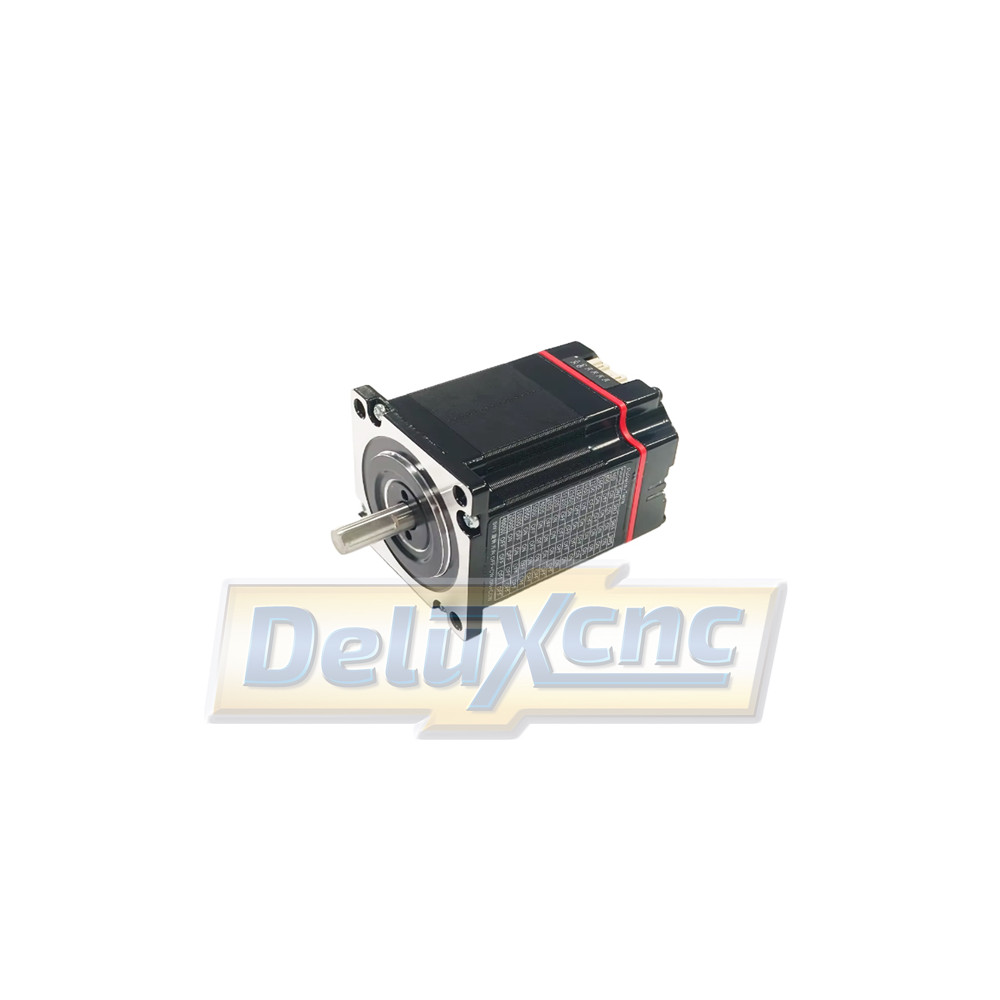

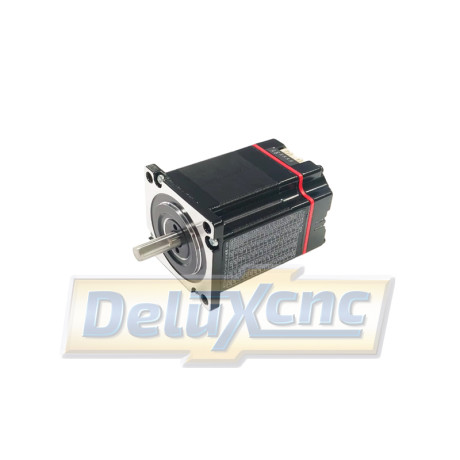

Model: 57HS76D8EIS-P
Step angle: 1.8 degrees
Number of phases: 2
Current: 5A
Torque: 2.2 N.M.
Shaft diameter: 8 mm
Shaft length: 21mm

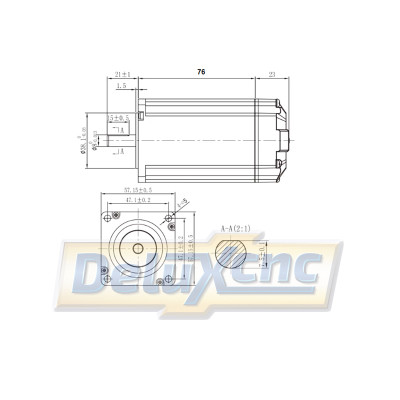

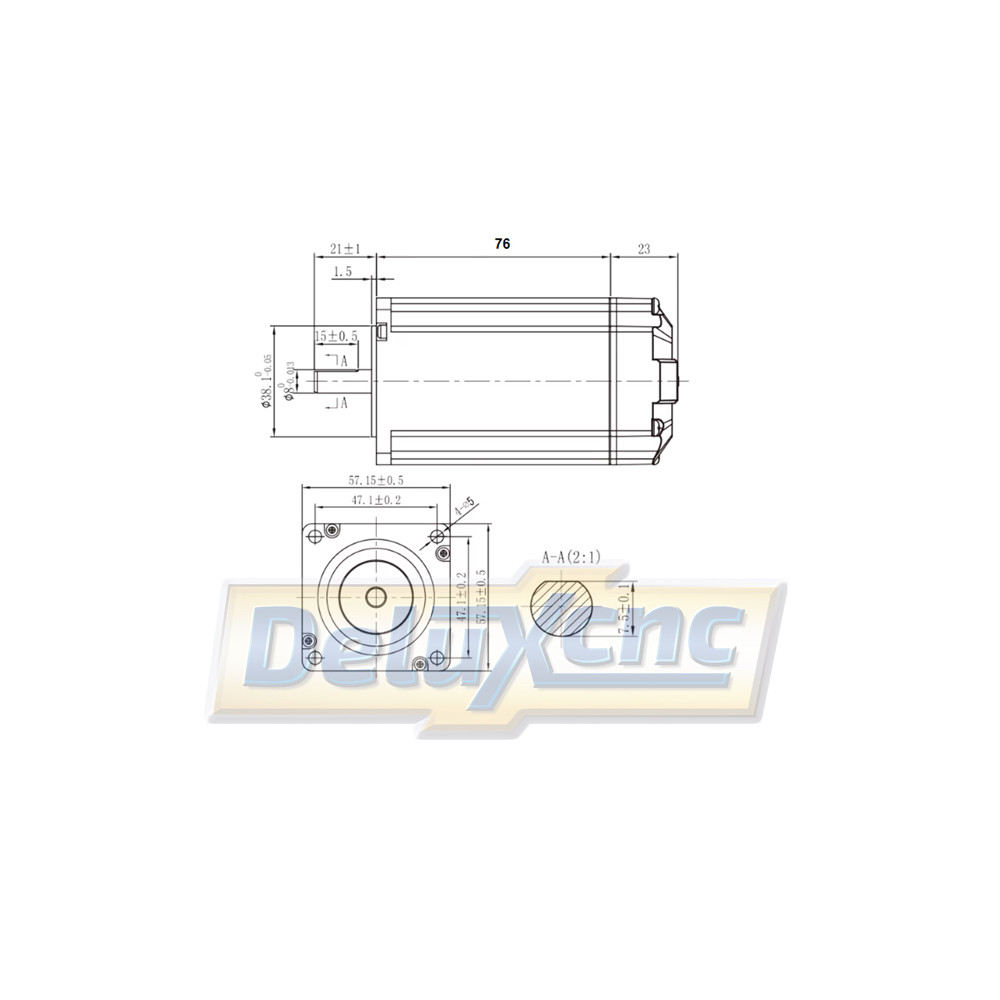

Dimensions: 57 x 57 x 102mm
Weight: 1237g
Stepper motor is known by its property to convert a train of input pulses into a precisely defined increment in the shaft position.
This is a high quality motor that can be used for a long time without stuck.
It has a quite stable performance during work and will not loss step.
Low noise and big torque, this is a great choice if you need a stepper motor.
Stepper motor can be widely used for 3D printer, CNC engraving machine, etc.
Data sheet
