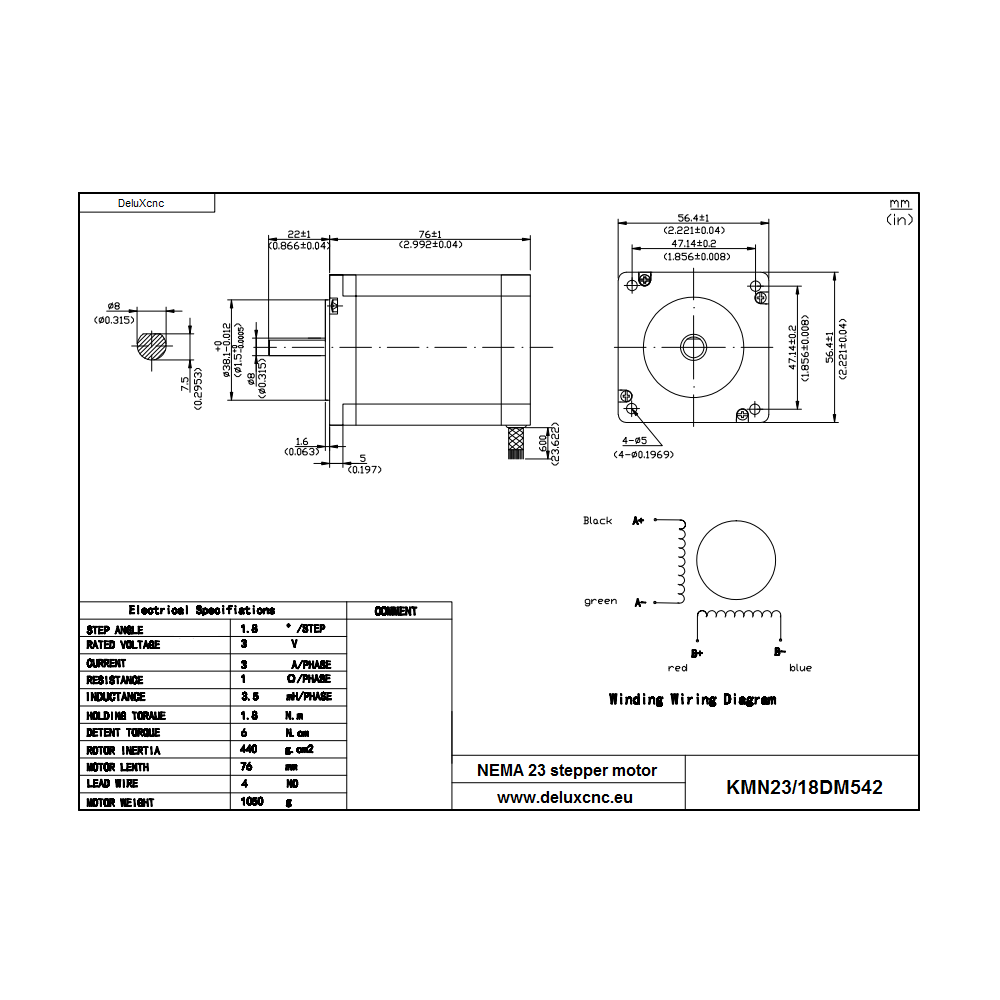

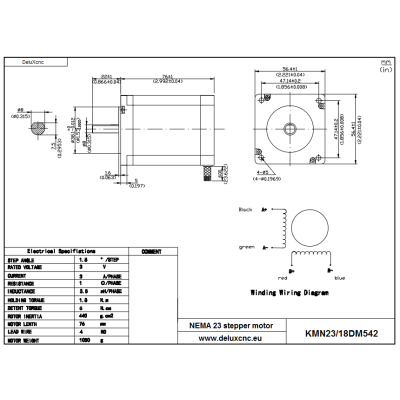

Specification:
Step angle: 1.8 degree
Number of phases: 2
Current: 3A
Resistance: 1 Ohm
Holding torque: 1,8 N.M
Shaft diameter: 8 mm
Motor Weight: 1050g
Stepper motor is known by its property to convert a train of input pulses into a precisely defined increment in the shaft position.

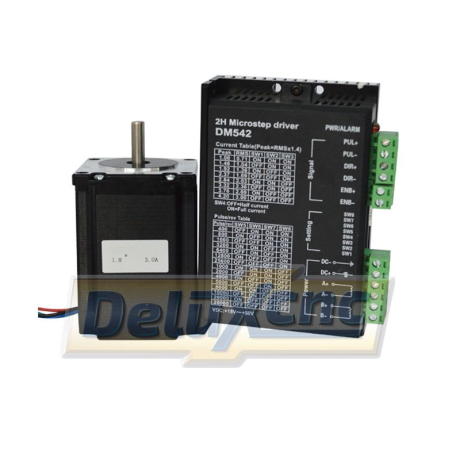

This is a high quality suit motor+driver that can be used for a long time without stuck.
It has a quite stable performance during work and will not loss step.
Low noise and big torque, this is a great choice if you need a stepper motor.
Stepper motor can be widely used for 3D printer, CNC engraving machine, etc.
Data sheet
Package Included: 1 x 5 axis CNC Breakout Board with optical coupler for Stepper Motor Driver...
Specification: Shaft: 8 mm X 10 mm Length: 30 mm Diameter: 25 mm Material: Aluminium
Package Included: 1 x 5 axis CNC Breakout Board with optical coupler for Stepper Motor Driver...
Specification:
Step angle: 1.8 degree
Number of phases: 2
Current: 3A
Resistance: 1 Ohm
Holding torque: 1,8 N.M
Shaft diameter: 8 mm
Motor Weight: 1050g
