Specification:
Model: 57HS56D8EIS-P
Step angle: 1.8 degrees
Number of phases: 2
Current: 4A
Torque: 1.2 N.M.
Shaft diameter: 8 mm
Shaft length: 21mm

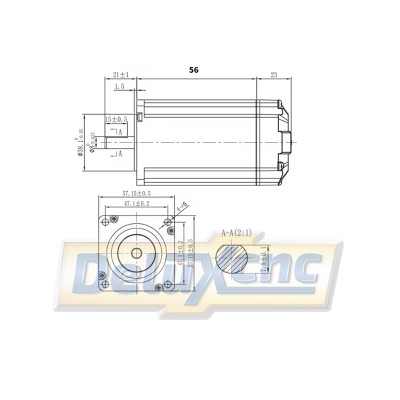

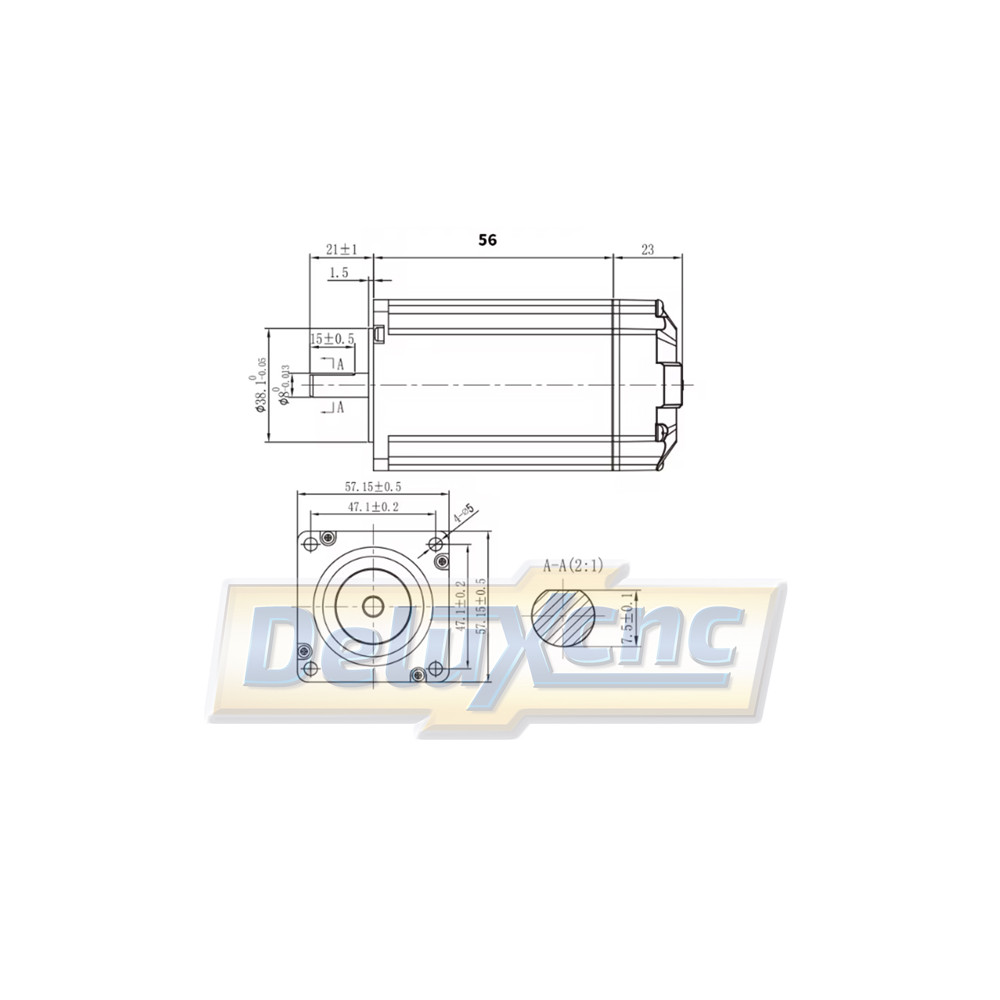

Dimensions: 57 x 57 x 80mm
Weight: 783g
Stepper motor is known by its property to convert a train of input pulses into a precisely defined increment in the shaft position.
This is a high quality motor that can be used for a long time without stuck.
It has a quite stable performance during work and will not loss step.
Low noise and big torque, this is a great choice if you need a stepper motor.
Stepper motor can be widely used for 3D printer, CNC engraving machine, etc.
Data sheet
Package Included: 1 x 5 axis CNC Breakout Board with optical coupler for Stepper Motor Driver...
Specification: Shaft: 8 mm X 10 mm Length: 30 mm Diameter: 25 mm Material: Aluminium
Input voltage 100-120V 6.8A, 60Hz or 200-240V 3.4A, 50Hz Output voltage 36V Output range of...
Specification: Step angle: 1.8 degree Number of phases: 2 Current: 3A Resistance: 1 Ohm...
Specification:
Model: 57HS56D8EIS-P
Step angle: 1.8 degrees
Number of phases: 2
Current: 4A
Torque: 1.2 N.M.
Shaft diameter: 8 mm
Shaft length: 21mm
Dimensions: 57 x 57 x 80mm
Weight: 783g
