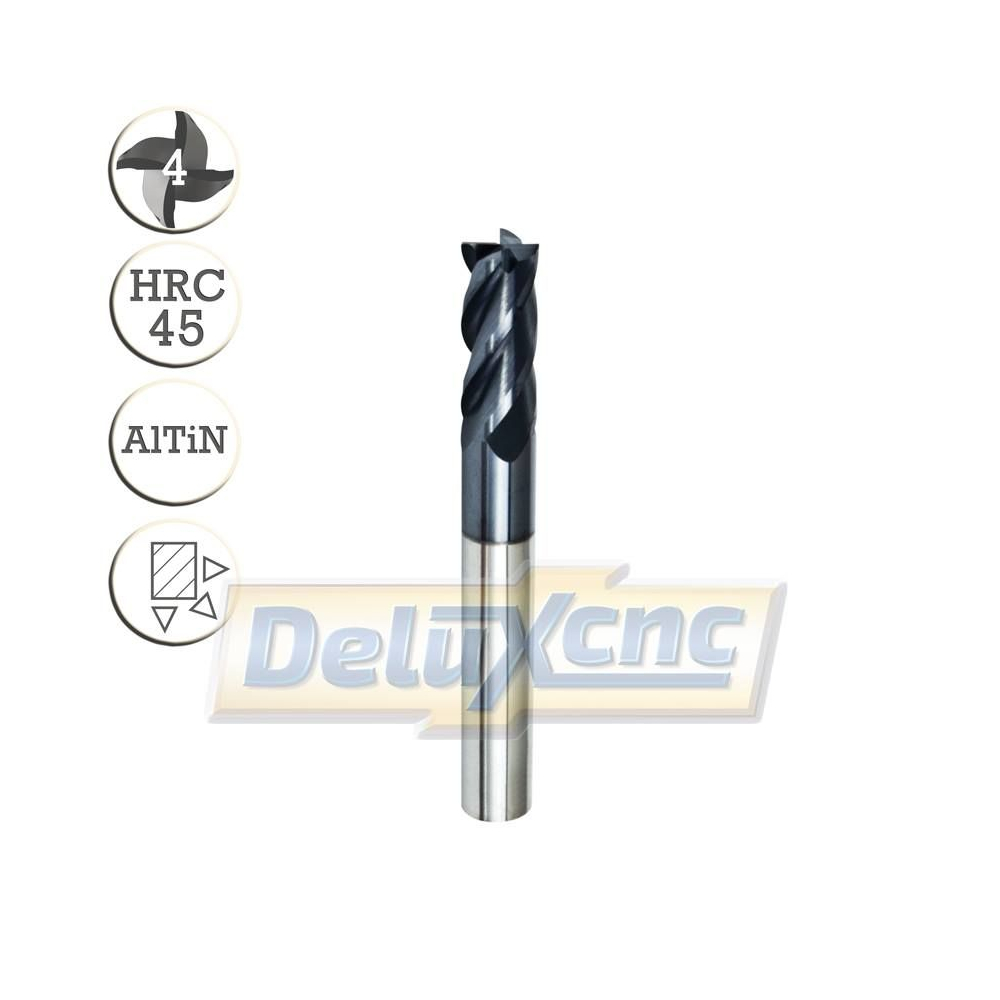

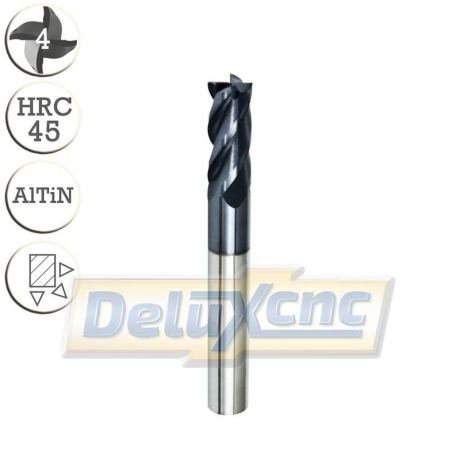

Four flute carbide End Mill 3/8 mm AlTiN
Specification: Shank diameter 4 mm Cutting surface diameter 3 mm Length of cutting surface 8 mm...
This eshop uses cookies to provide services, customize your ads, and analyze your traffic. Více informací |
Přijmout všechny cookies Personalizovat |
Přijmout zvolené cookies |
Specification:
Shank diameter 5 mm
Cutting surface diameter 5 mm
Length of cutting surface 13 mm
Overall length 50 mm
Hardness: HRC45
Protective coating: AlTiN
Description:
FouR flute carbide end mill with TiAIN protective coating for general use. Suitable for iron, steel... to hardness HRC45.
Four super sharp blades for standard cutting with high chip removal speed.
The TiAIN coating increases the stability of the cut and extends tool life during cutting.
Spiral design significantly improves cutting speed and creates a smooth and fine cutting surface.
Cutting speeds: Cast iron, Carbon steel 750N/Mm2 - 7000 rpm/min 750mm/min, Carbon steel HRC 30 - 6400 rpm/min 690mm/min, Hardened steel HRC40 -5300 rpm 575mm/min
Data sheet
Specification: Shank diameter 4 mm Cutting surface diameter 3 mm Length of cutting surface 8 mm...
Specification: Shank diameter 4 mm Cutting surface diameter 4 mm Length of cutting surface 10 mm...
Specification: Shank diameter 6 mm Cutting surface diameter 6 mm Length of cutting surface 15 mm...
