Specification:
Shank diameter 4 mm
Cutting surface diameter 4 mm
Length of cutting surface 10 mm
Overall length 50 mm
Hardness: HRC45
Protective coating: AlTiN
Description:

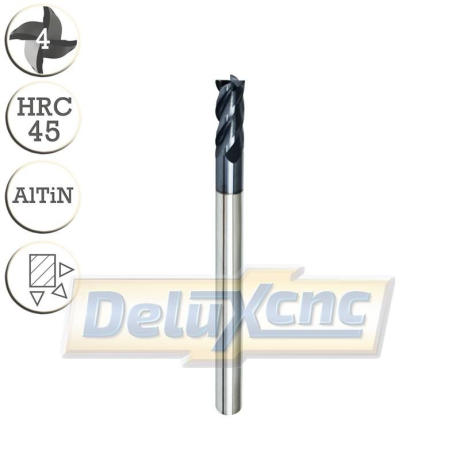

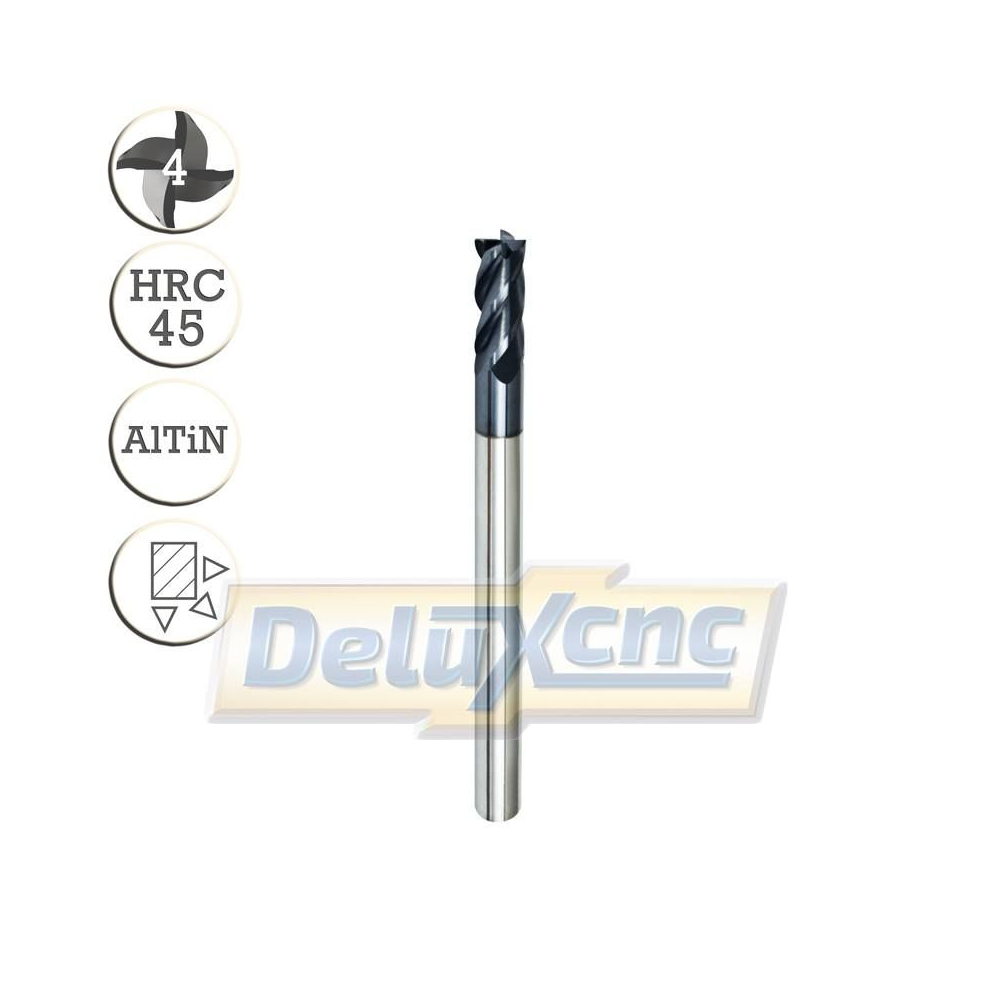

Four-flute carbide end-mill with AlTiN protective coating for general use. Suitable for iron, steel to hardness HRC45.
Four super sharp blades for standard cutting with high chip removal speed.
The AlTiN coating increases the stability of the cut and extends tool life during cutting.
Spiral design significantly improves cutting speed and creates a smooth and fine cutting surface.
Cutting speeds: Cast iron, Carbon steel 750N / Mm2 - 10800ot / min 700mm / min, Carbon steel HRC 30 - 10000ot / min 640mm / min, Hardened steel HRC40 - 8000ot / min 535mm / min
Data sheet
Specification: Shank diameter 4 mm Cutting surface diameter 3 mm Length of cutting surface 8 mm...
Specification: Shank diameter 6 mm Cutting surface diameter 6 mm Length of cutting surface 15...
Specification: Shank diameter 4 mm Cutting surface diameter 4 mm Length of cutting surface 15 mm...
Specification:
Shank diameter 4 mm
Cutting surface diameter 4 mm
Length of cutting surface 10 mm
Overall length 50 mm
Hardness: HRC45
Protective coating: AlTiN
