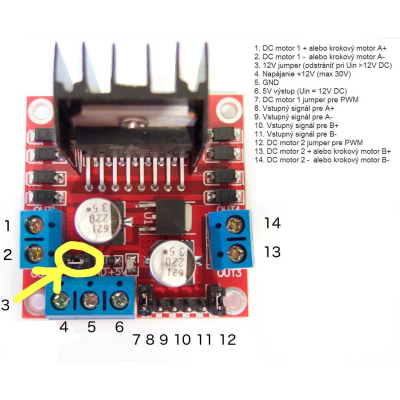

Stepper Motor Driver Controller L298N 2A
Specifications:
Model: L298N
Logic power supply: 5V
Control Power: 7 - 12V (max 30V)
Maximum current: 2A
Size: 42 x 42 x 28 mm
Suitable for small automatic devices with CNC control system, laser, engraving machines and more.
High working power, large current can reach 3A MAX and continue current is 2A, power to 25w.

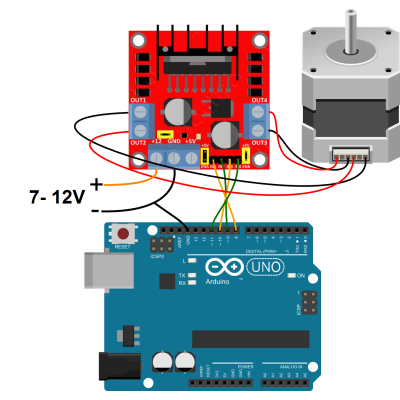

Can drive one 2-phase stepper motor, one 4-phase stepper motor or two DC motors.
Compatible with most stepper motors with 7V-30V voltage and current below 3A.
Built-in 5V converter. (No need to connect external power supply + 5V)
262-OKML298N/2
19 Items
Comments (0)
Your review appreciation cannot be sent
Report comment
Are you sure that you want to report this comment?
Report sent
Your report has been submitted and will be considered by a moderator.
Your report cannot be sent
Write your review
Review sent
Your comment has been submitted and will be available once approved by a moderator.
Your review cannot be sent
Specifications:
Model: L298N
Logic power supply: 5V
Control Power: 7 - 12V (max 30V)
Maximum current: 2A
Size: 42 x 42 x 28 mm
