Specification:
Model: 23HS8442D8P7.5
Step angle: 1.8 degrees
Current: 4.2 A
Motor torque: 220 N.cm
Brake holding torque: 1Nm
Brake voltage: 24V
Shaft diameter: 8 mm
Number of cables: 4

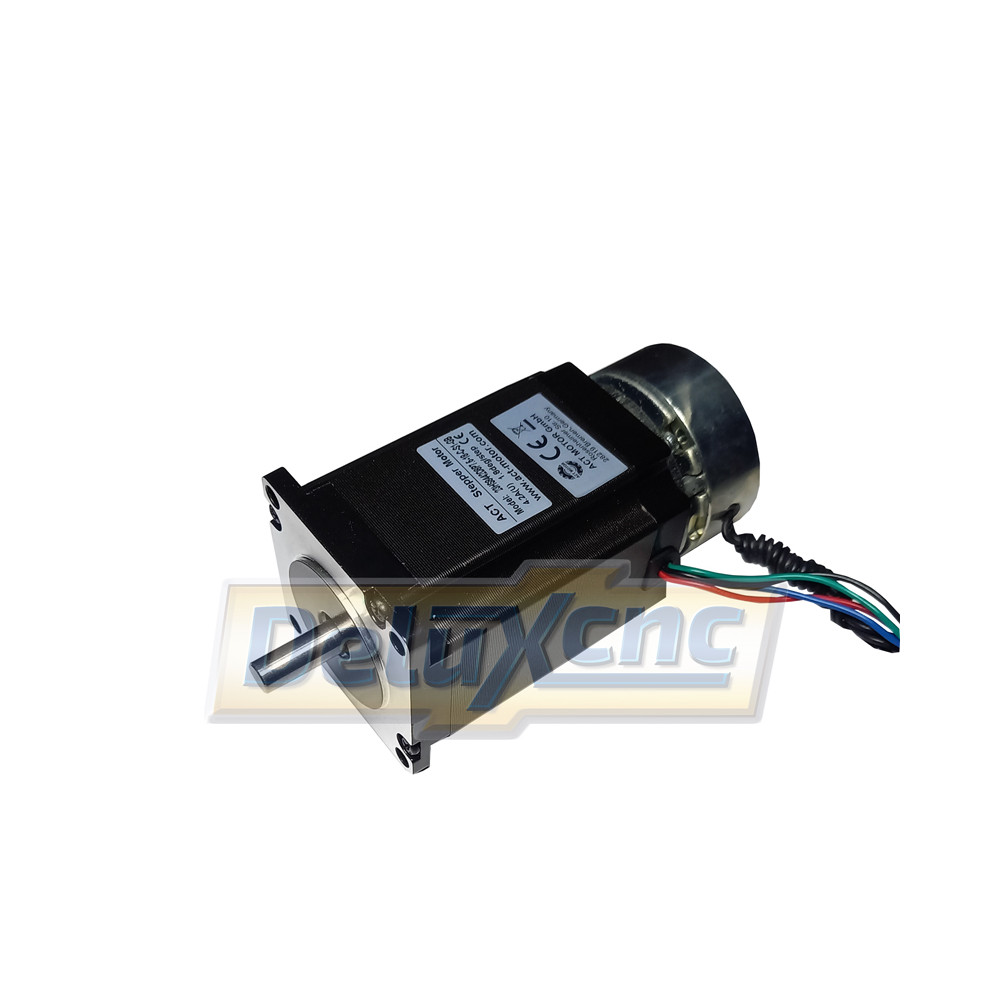

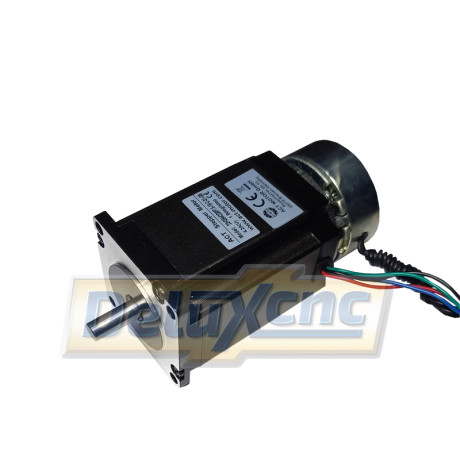

Powerful NEMA 23 Stepper Motor with Integrated Electromagnetic Brake
The 23HS8442D8P7.5-18-C-S1-GB is a reliable 2-phase stepper motor (open-loop) that is equipped with an electromagnetic brake to securely lock the axis after power is turned off. The motor provides high torque, precise 1.8° step and stable operation, making it ideal for CNC machines, automation and positioning systems.
The integrated brake prevents unwanted shaft movement in the event of a power failure, making it perfect for vertical axes, lifting mechanisms and precise positioning. This is a high-quality motor that can be used for a long time and without problems in various applications such as 3D printers, CNC machine tools, lasers, etc.

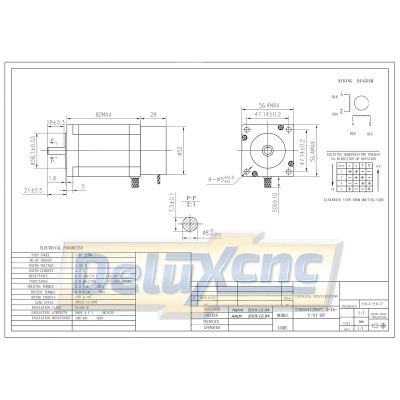

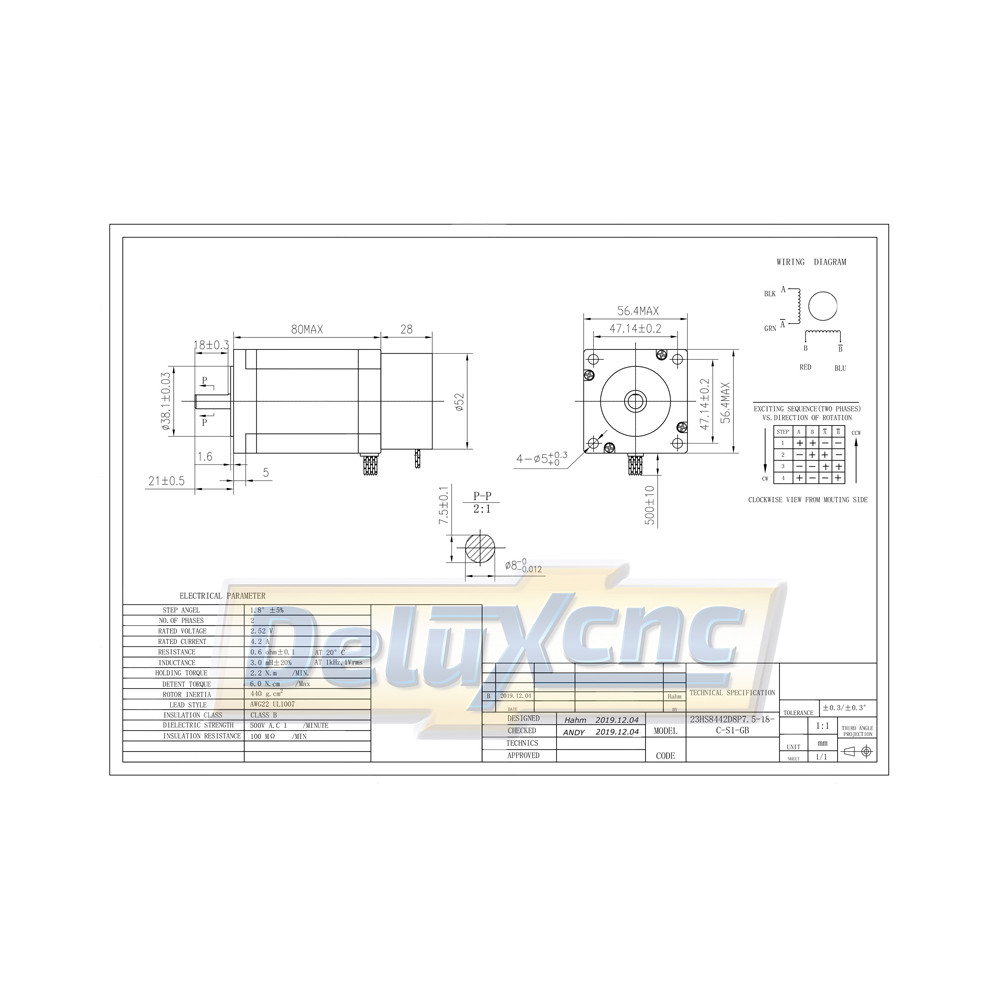

Data sheet
Package Included: 1 x 5 axis CNC Breakout Board with optical coupler for Stepper Motor Driver...
Specification: Shaft: 8 mm X 10 mm Length: 30 mm Diameter: 25 mm Material: Aluminium
Specifications: Input voltage: DC 18 ~ 50V Maximum current: 4.2A (peak) 15 selectable...
Specification:
Model: 23HS8442D8P7.5
Step angle: 1.8 degrees
Current: 4.2 A
Motor torque: 220 N.cm
Brake holding torque: 1Nm
Brake voltage: 24V
Shaft diameter: 8 mm
Number of cables: 4
CNC milling machines
CNC Lasers
