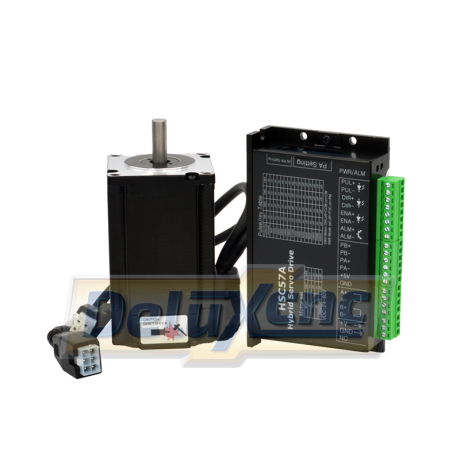

Closed loop stepper motor NEMA23 3N.m
Model: 57HS112ES+HSC57A
Step angle: 1.8°
Number of phases: 2
Current: 5A
Torque: 3 N.M
Shaft diameter: 8 mm
Cable length: 3m
Stepper motor is known by its property to convert a train of input pulses into a precisely defined increment in the shaft position.
This is a high quality motor that can be used for a long time without stuck.
It has a quite stable performance during work and will not loss step.
Low noise and big torque, this is a great choice if you need a stepper motor.
Stepper motor can be widely used for 3D printer, CNC engraving machine, etc.

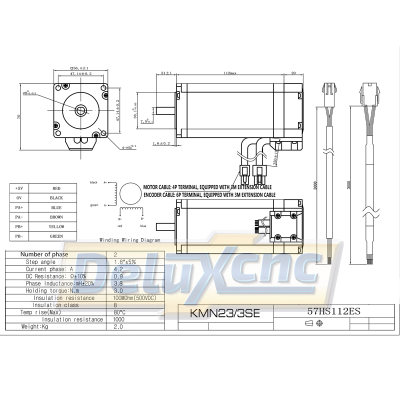

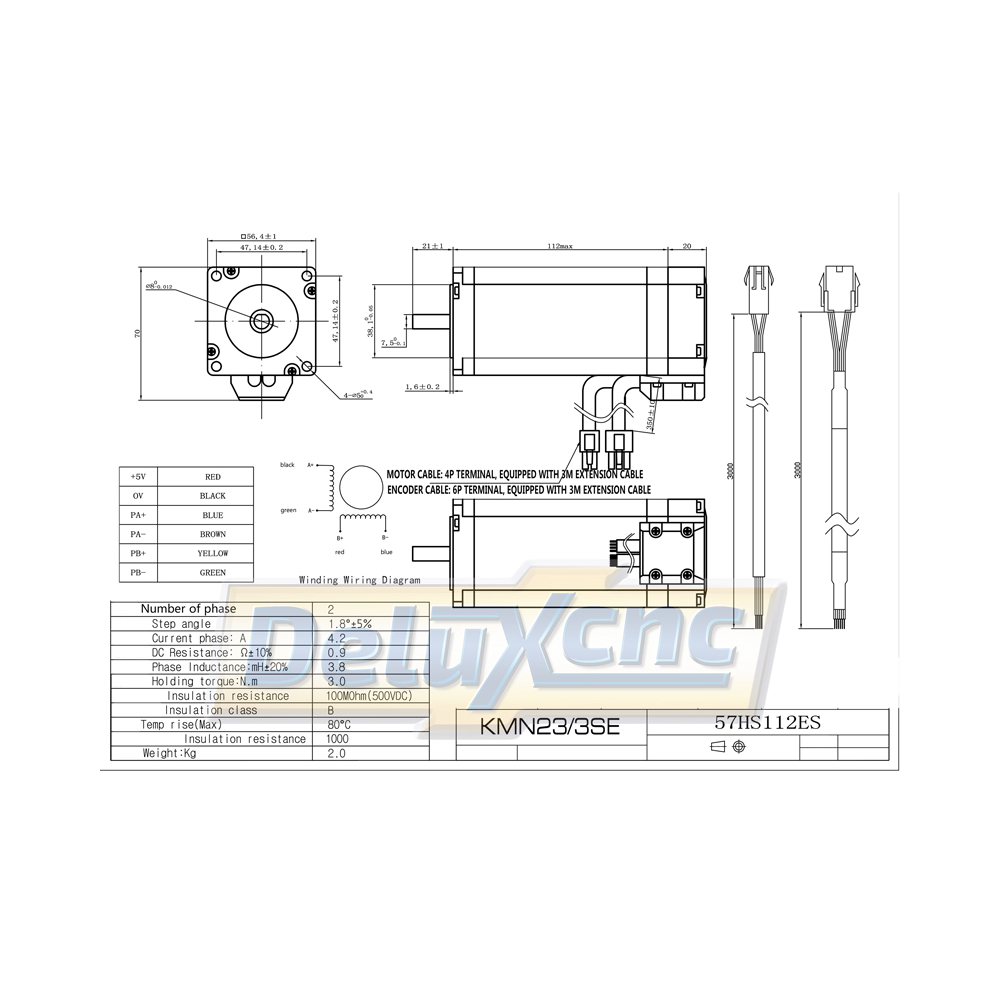

KMN23/3SE
Data sheet
- Step angle
- 1.8°
- Moment
- 3 NM
- Flange
- NEMA 23
- Rated current
- 5 A
- Shaft diameter
- 8mm
