Stepper motor Nema17 HS4817 0,55 N.M
Specification:
Model: 42HS4817A4CE
Step angle: 1.8 degrees
Number of phases: 2
Voltage: 3,1V
Current: 1.7A
Torque: 0.55 N.M.
Shaft diameter: 5 mm
Shaft length 21 mm
Dimensions: 42 x 42 x 48mm
Weight: 356 grams
Stepper motor is known by its property to convert a train of input pulses into a precisely defined increment in the shaft position.
This is a high quality motor that can be used for a long time without stuck.
It has a quite stable performance during work and will not loss step.
Low noise and big torque, this is a great choice if you need a stepper motor.
Stepper motor can be widely used for 3D printer, CNC engraving machine, etc.

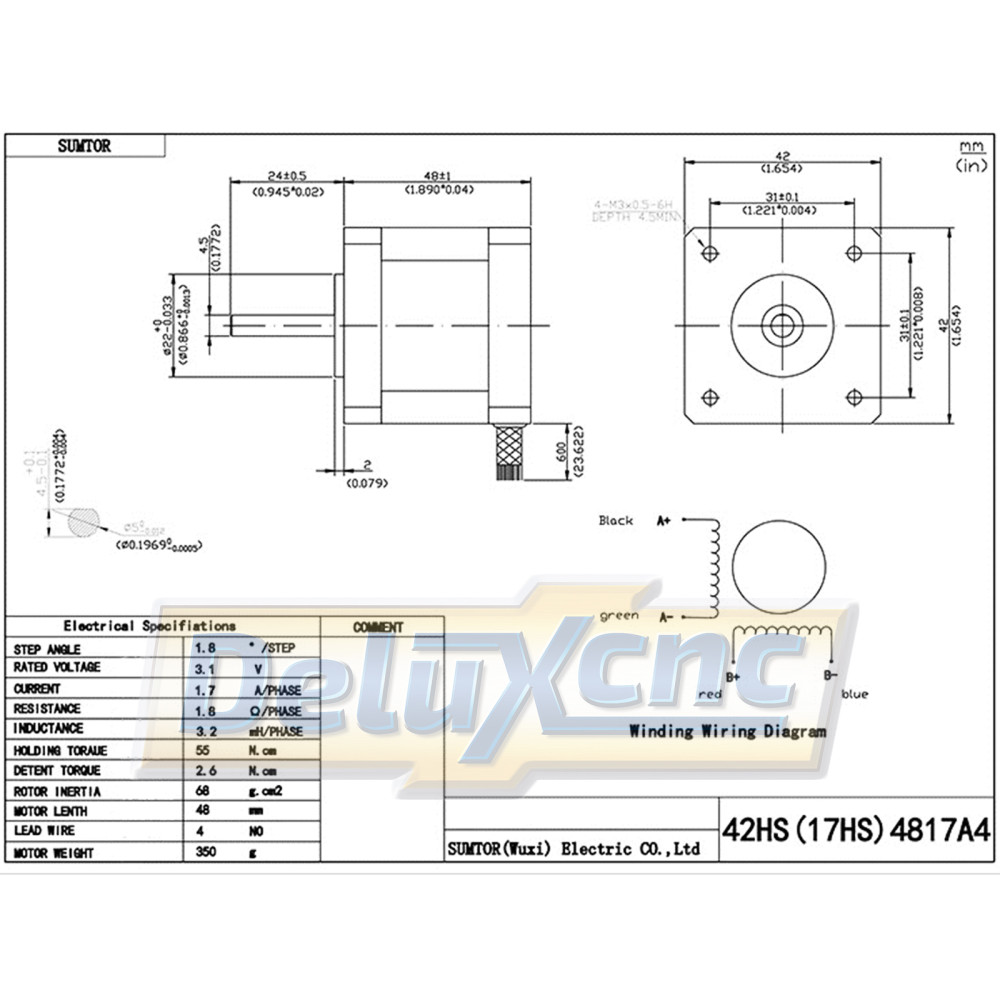

Data sheet
- Step angle
- 1.8°
- Moment
- 0.55 NM
- Flange
- NEMA 17
- Rated current
- 1.7A
- Shaft diameter
- 5mm
