Linear ball bearing 12 mm
Specification: Inside Diameter: 12 mm Outside Diameter: 21 mm Width: 30 mm
|
This eshop uses cookies to provide services, customize your ads, and analyze your traffic. Více informací |
Přijmout všechny cookies Personalizovat |
| Přijmout zvolené cookies |

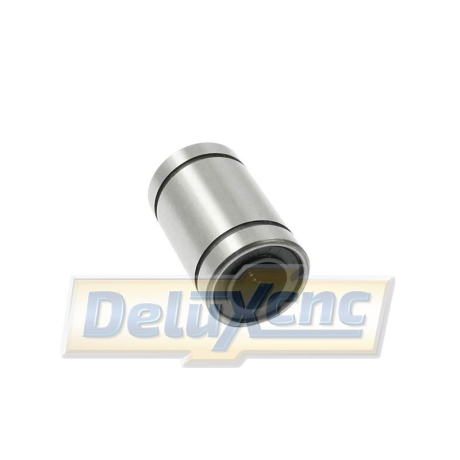

Specification:
Type: LM13UU
Inside Diameter: 13 mm
Outside Diameter: 23 mm
Width: 32 mm
Rubber sealed linear ball bushings: Manufactured with rubber seals these linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service. They consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways. Rubber seals to prevent the ingress of dust and moisture.
Closed types - the outer raceway is solid with no relief machined so clearances are preset.
Benefits: Low friction, low maintenance, rubber seal limits moisture and dirt ingress, cost effective solution
Data sheet
Specification: Inside Diameter: 12 mm Outside Diameter: 21 mm Width: 30 mm
Specification: Inside Diameter: 16 mm Outside Diameter: 28 mm Width: 37 mm
