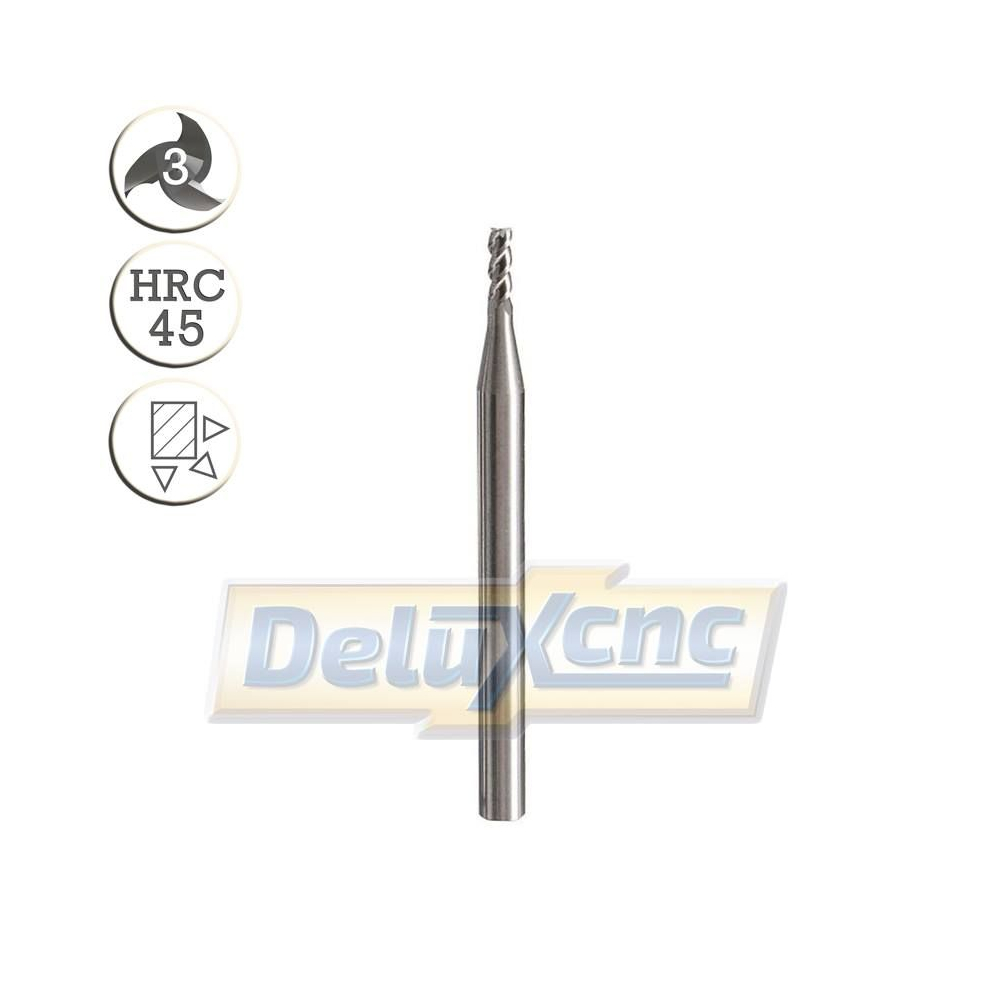

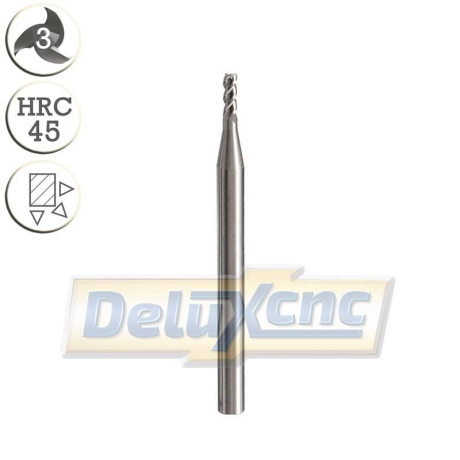

Three flute carbide End Mill for aluminium Φ3 Lc9 D3mm
Specification: Shank diameter 3 mm Cutting surface diameter 3 mm Length of cutting surface 9...
|
This eshop uses cookies to provide services, customize your ads, and analyze your traffic. Více informací |
Přijmout všechny cookies Personalizovat |
| Přijmout zvolené cookies |
Specification:
Shank diameter 4 mm
Cutting surface diameter 2 mm
Length of cutting surface 6 mm
Overall length 50 mm
Description:
Has good milling and cutting performance, ensure the high efficiency of the work.
Sufficient bending strength and wear resistance, slot milling, hole and the edge of the board, the surface is clean, neat, no glitches.
High strength, resistance to bending, breakage resistance, and have excellent physical properties, long tool life.
Tool type, suitable for the needs of all aspects of the milling.
Speeds and Feeds for Side Milling (Aluminium alloy RPM 32000 Feed 900 mm/min) for Slot Milling reduce values by 40%-70%, use air coolant or high mist retardant liquid cooling
Material Process:
Aluminum, Copper, Brass and other Non-ferrous Metals.
Data sheet
