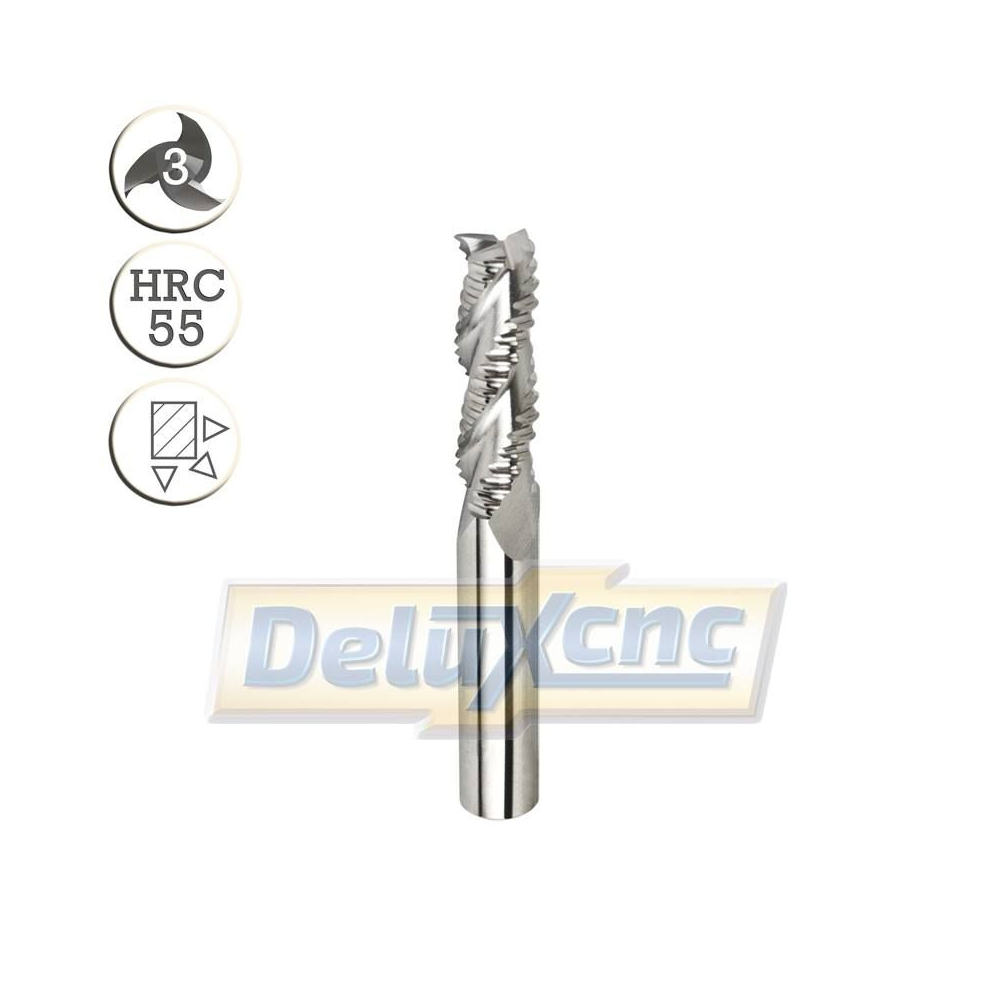

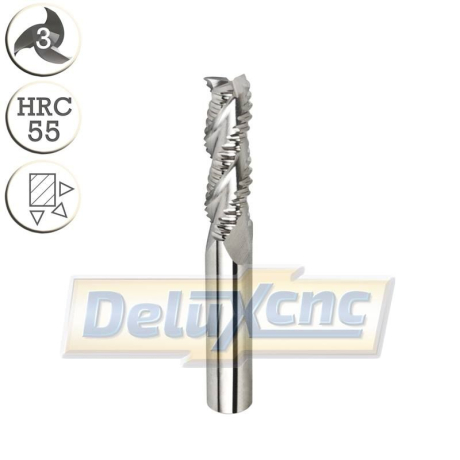

Three flute roughing carbide End Mill Φ6 Lc15 D6mm
Specification:
Shank diameter 6 mm
Cutting surface diameter 6 mm
Length of cutting surface 15 mm
Overall length 50 mm
Description:
Has good milling and cutting performance, ensure the high efficiency of the work.
Sufficient bending strength and wear resistance, slot milling, hole and the edge of the board, the surface is clean, neat, no glitches.
High strength, resistance to bending, breakage resistance, and have excellent physical properties, long tool life.
Tool type, suitable for the needs of all aspects of the milling.
Speeds and Feeds for Side Milling (Aluminium alloy RPM 13000 Feed 3000 mm/min) for Slot Milling reduce values by 40%-70%, use air coolant or high mist retardant liquid cooling
Material Process:
Aluminum, Copper, Brass and other Non-ferrous Metals.
Data sheet
- Cutting surface diameter
- 6 mm
- Shank diameter
- 6 mm
- Cutting surface length
- 15 mm
- Total length
- 50mm
- Hardness
- HRC 55
- Number of blades
- 3
- Tool type
- Roughing
- Tool material
- Carbide
