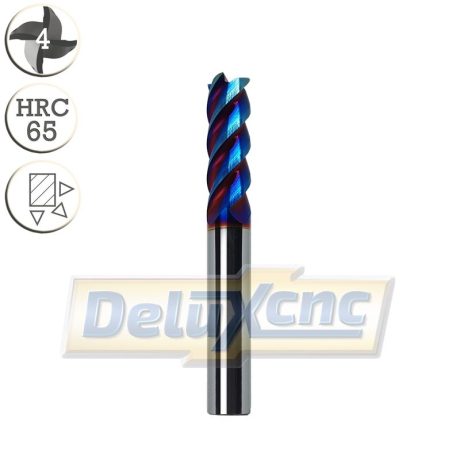

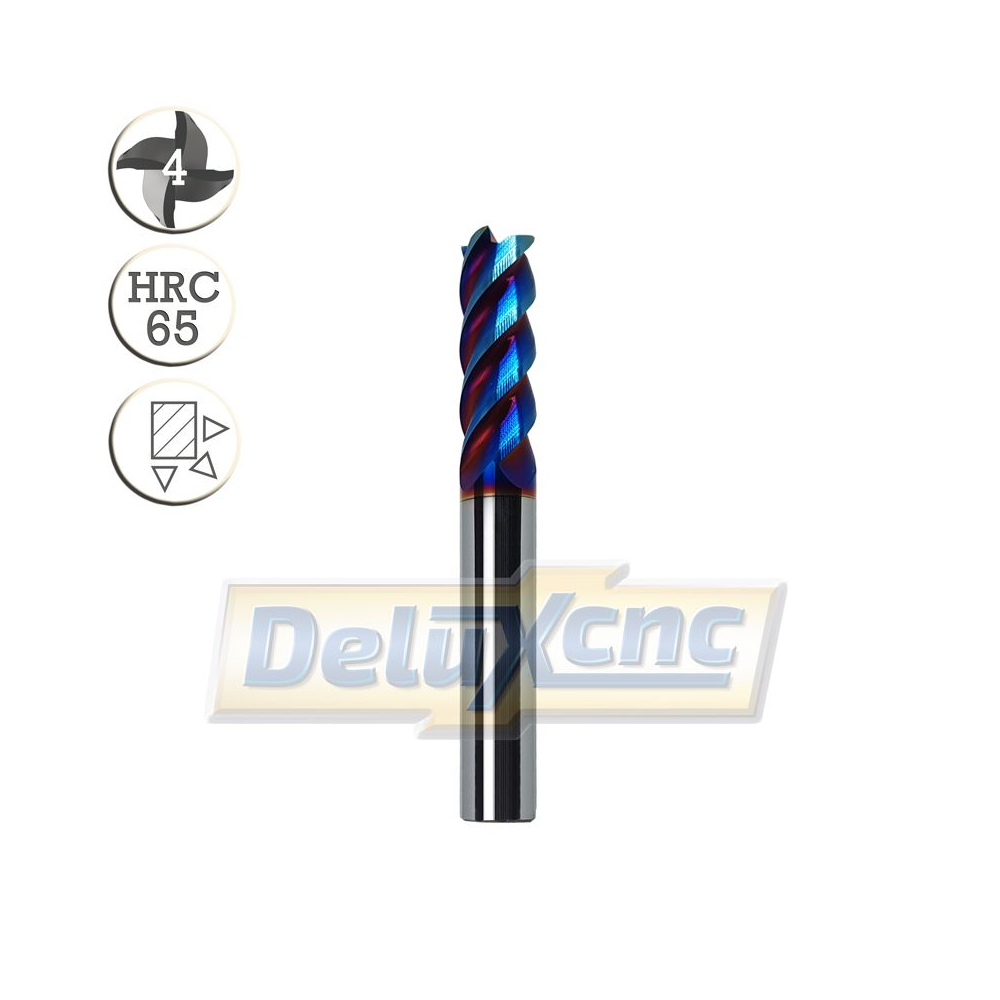

Four flute carbide End Mill Φ10mm F-Nano blue

Specification:

Shank diameter 10 mm

Cutting surface diameter 10 mm

Length of cutting surface 25 mm

Overall length 75 mm

Hardness: HRC65

Protective coating: F-Nano

€31.98
Tax included €26.00 bez DPH
Delivery within 1-2 days
Quantity
In stock

Goods are just viewed by 9 people

Description:

4 Flutes TiAlN F-NaNo Blue Coated Ultra Micro Grain Carbide for high hardened steels up to HRC65.

Four super sharp blades for standard cutting with high chip removal speed.

The F-Nano coating increases the stability of the cut and extends tool life during cutting.

Spiral design significantly improves cutting speed and creates a smooth and fine cutting surface.

Pre Hardened and Hardened Steel 40-50HRC  - RPM 9600 Feed 1540 mm/min

Hardened Steel 50-60HRC  - RPM 4800 Feed 770 mm/min

High Hardened Steel 60-68HRC  -  RPM 3200 Feed 510 mm/min



SKFN100/2565100075
5 Items

Data sheet

Cutting surface diameter
10 mm
Shank diameter
10 mm
Cutting surface length
25 mm
Total length
75 mm
Hardness
HRC 65
Protective layer
TiAlN F-NaNo
Number of blades
4
Tool type
Front shank
Tool material
Carbide
Suitable for the material
Steel up to hardness HRC65
