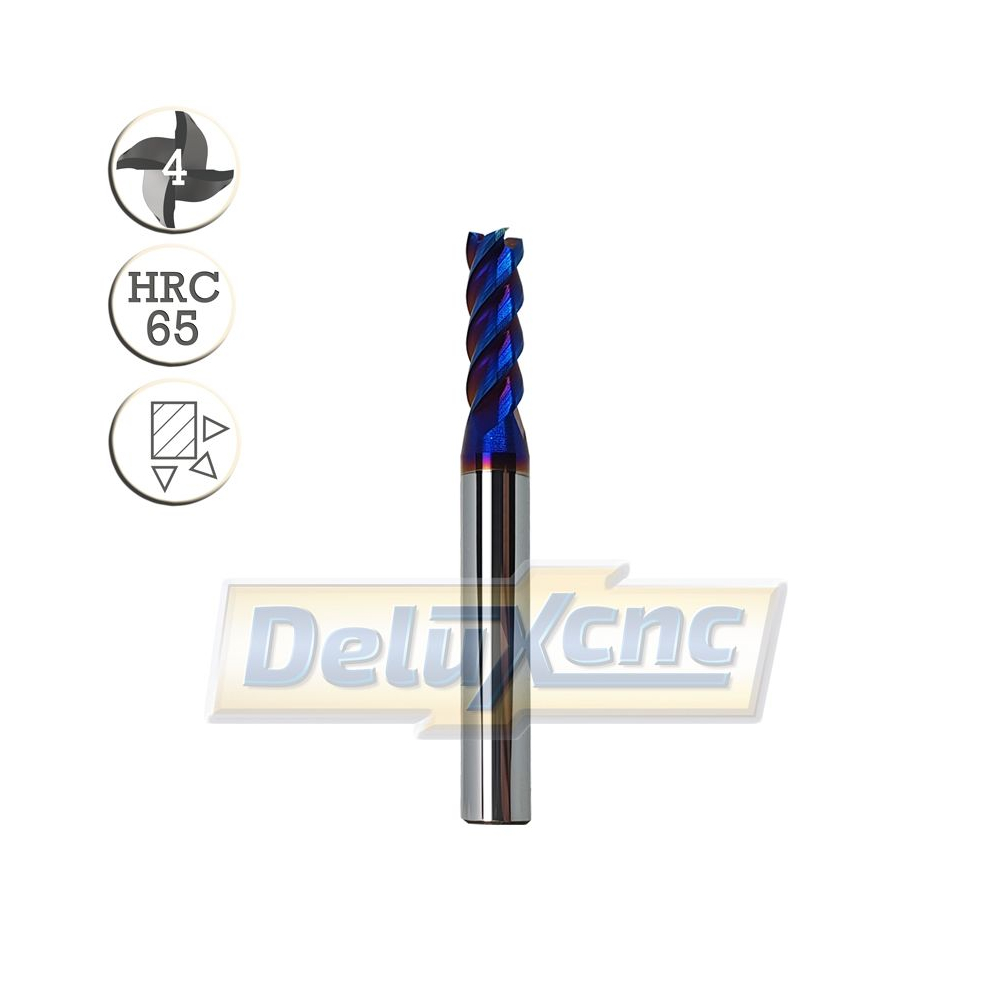

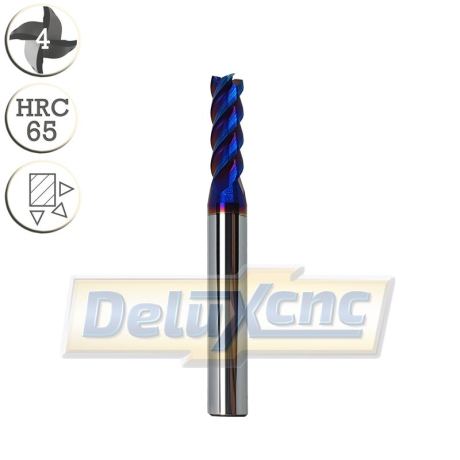

Four flute carbide End Mill Φ5mm F-Nano blue
Specification:
Shank diameter 6 mm
Cutting surface diameter 5 mm
Length of cutting surface 13 mm
Overall length 50 mm
Hardness: HRC65
Protective coating: F-Nano
Description:
4 Flutes TiAlN F-NaNo Blue Coated Ultra Micro Grain Carbide for high hardened steels up to HRC65.
Four super sharp blades for standard cutting with high chip removal speed.
The F-Nano coating increases the stability of the cut and extends tool life during cutting.
Spiral design significantly improves cutting speed and creates a smooth and fine cutting surface.
Pre Hardened and Hardened Steel 40-50HRC - RPM 19000 Feed 1360 mm/min
Hardened Steel 50-60HRC - RPM 9500 Feed 680 mm/min
High Hardened Steel 60-68HRC - RPM 6400 Feed 460 mm/min
Data sheet
- Cutting edge diameter
- 5 mm
- Shank diameter
- 6 mm
- Cutting edge length
- 13 mm
- Total length
- 50 mm
- Hardness
- HRC 65
- Protective coating
- TiAlN F-NaNo
- Number of flutes
- 4
- Type of end mill
- Slot end mill
- Tool material
- Solid carbide
- Suitable for material
- Hardened steel up to HRC65
