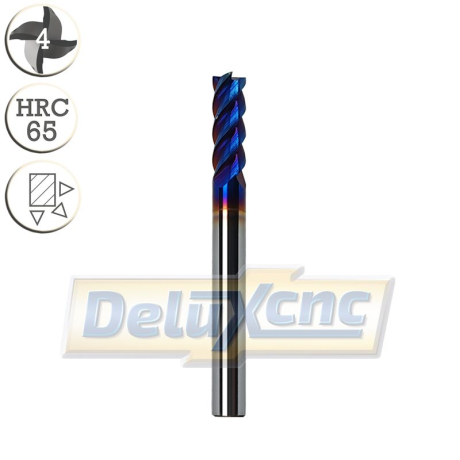

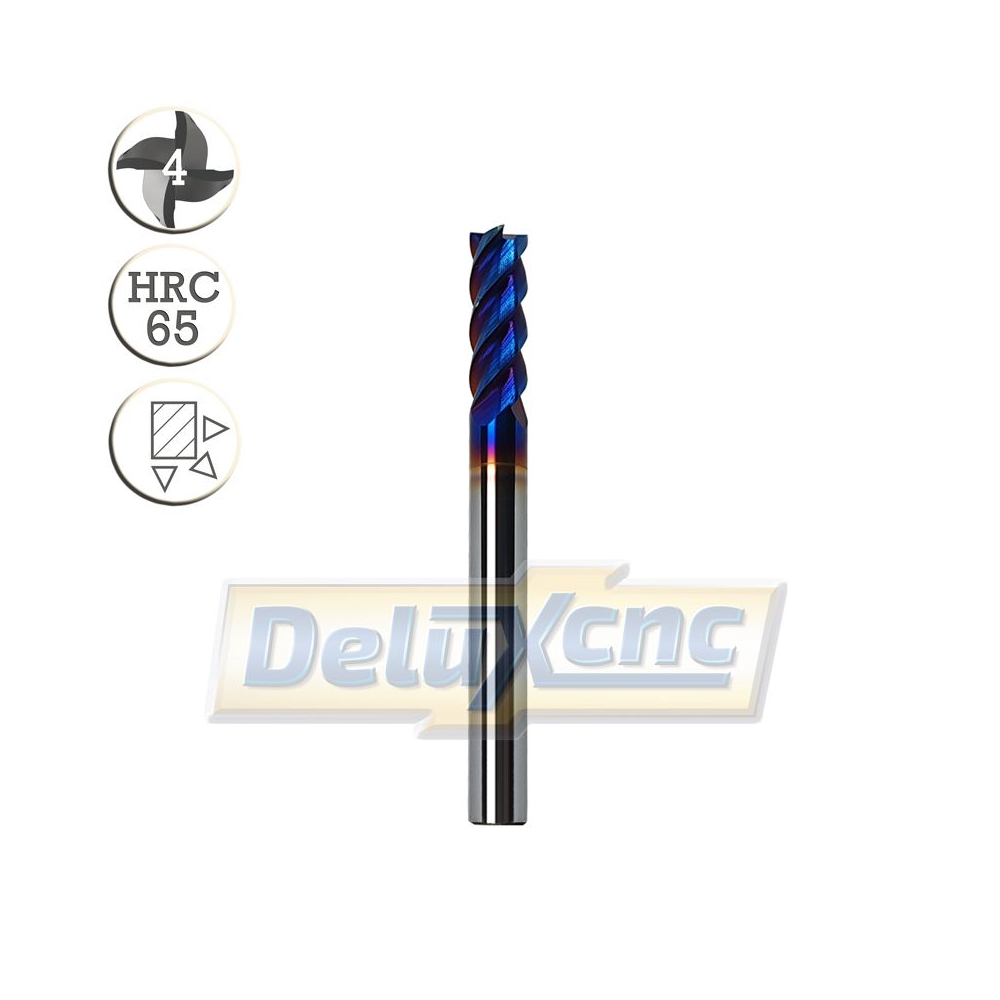

Four flute carbide End Mill Φ5mm F-Nano blue

Specification:

Shank diameter 5 mm

Cutting surface diameter 5 mm

Length of cutting surface 13 mm

Overall length 50 mm

Hardness: HRC65

Protective coating: F-Nano

€11.69
Tax included €9.50 bez DPH
Delivery within 1-2 days
Quantity
In stock

Goods are just viewed by 7 people

Description:

4 Flutes TiAlN F-NaNo Blue Coated Ultra Micro Grain Carbide for high hardened steels up to HRC65.

Four super sharp blades for standard cutting with high chip removal speed.

The F-Nano coating increases the stability of the cut and extends tool life during cutting.

Spiral design significantly improves cutting speed and creates a smooth and fine cutting surface.

Pre Hardened and Hardened Steel 40-50HRC  - RPM 19000 Feed 1360 mm/min

Hardened Steel 50-60HRC  - RPM 9500 Feed 680 mm/min

High Hardened Steel 60-68HRC  -  RPM 6400 Feed 460 mm/min



SKFN050/1365050050
16 Items

Data sheet

Cutting surface diameter
5mm
Shank diameter
5mm
Cutting surface length
13 mm
Total length
50mm
Hardness
HRC 65
Protective layer
TiAlN F-NaNo
Number of blades
4
Tool type
Front shank
Tool material
Carbide
Suitable for the material
Steel up to hardness HRC65
