  • -€1.20

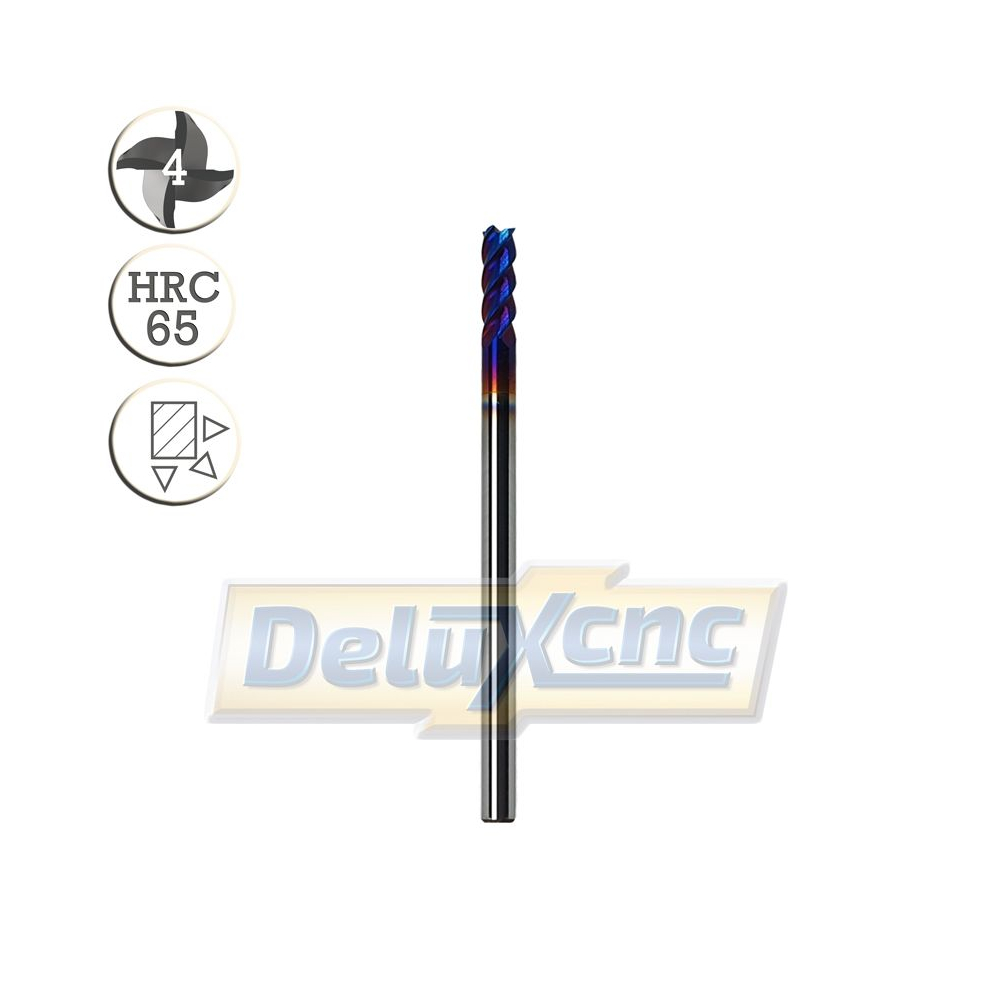

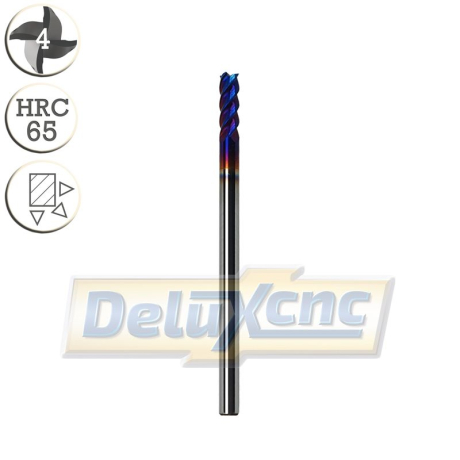

Four flute carbide End Mill Φ3mm F-Nano blue

Specification:

Shank diameter 3 mm

Cutting surface diameter 3 mm

Length of cutting surface 9 mm

Overall length 50 mm

Hardness: HRC65

Protective coating: F-Nano

€7.16
Tax included €5.82 bez DPH
€8.36 Save €1.20
Delivery within 1-2 days
Quantity
In stock

Goods are just viewed by 5 people

Description:

4 Flutes TiAlN F-NaNo Blue Coated Ultra Micro Grain Carbide for high hardened steels up to HRC65.

Four super sharp blades for standard cutting with high chip removal speed.

The F-Nano coating increases the stability of the cut and extends tool life during cutting.

Spiral design significantly improves cutting speed and creates a smooth and fine cutting surface.

Pre Hardened and Hardened Steel 40-50HRC  - RPM 32000 Feed 1020 mm/min

Hardened Steel 50-60HRC  -  RPM 16000 Feed 510 mm/min

High Hardened Steel 60-68HRC  -  RPM 11000 Feed 350 mm/min



SKFN030/0965030050
8 Items

Data sheet

Cutting surface diameter
3mm
Shank diameter
3mm
Cutting surface length
9mm
Total length
50mm
Hardness
HRC 65
Protective layer
TiAlN F-NaNo
Number of blades
4
Tool type
Front shank
Tool material
Carbide
Suitable for the material
Steel up to hardness HRC65
