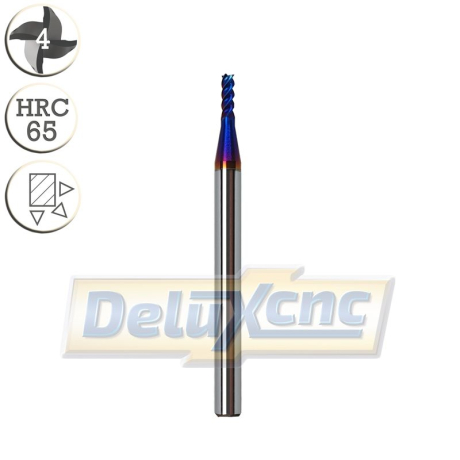

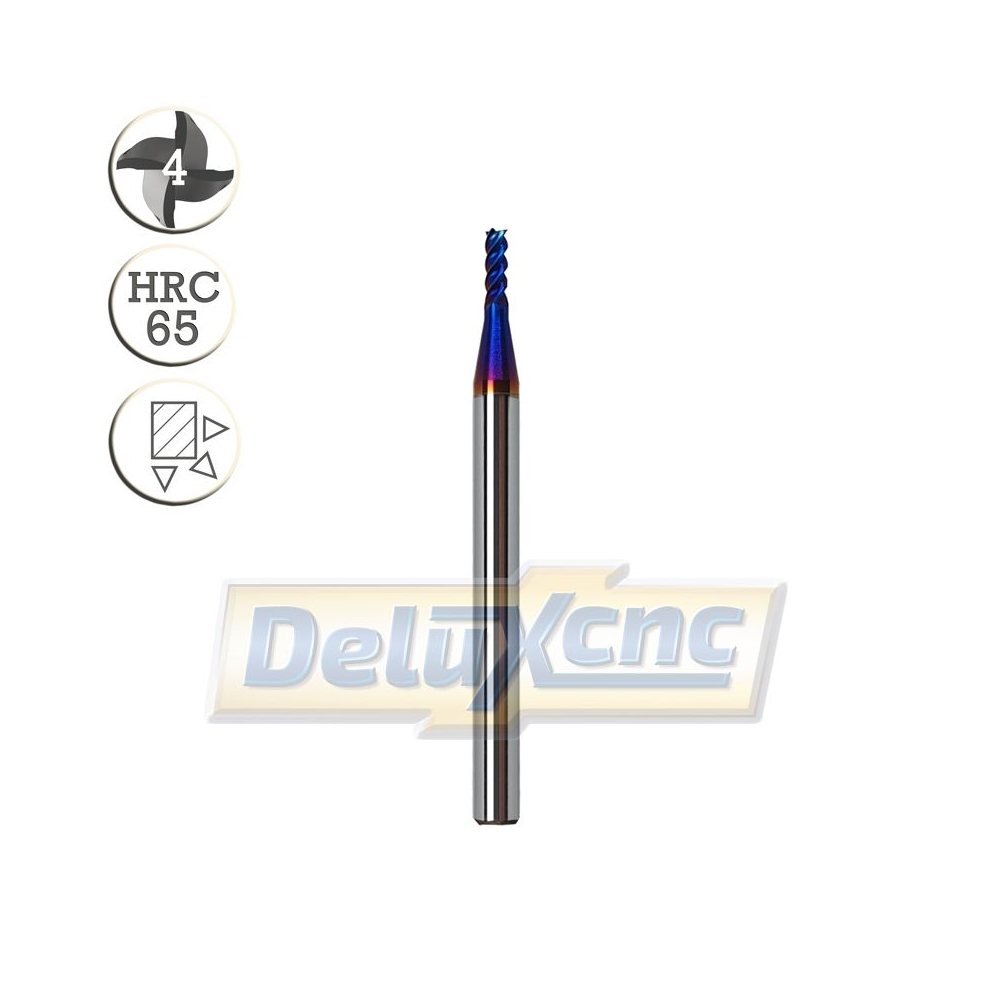

Four flute carbide End Mill Φ2mm F-Nano blue

Specification:

Shank diameter 4 mm

Cutting surface diameter 2 mm

Length of cutting surface 6 mm

Overall length 50 mm

Hardness: HRC65

Protective coating: F-Nano

€6.15
Tax included €5.00 bez DPH
Delivery within 1-2 days
Quantity
In stock

Goods are just viewed by 5 people

Description:

4 Flutes TiAlN F-NaNo Blue Coated Ultra Micro Grain Carbide for high hardened steels up to HRC65.

Four super sharp blades for standard cutting with high chip removal speed.

The F-Nano coating increases the stability of the cut and extends tool life during cutting.

Spiral design significantly improves cutting speed and creates a smooth and fine cutting surface.

Pre Hardened and Hardened Steel 40-50HRC  - RPM 40000 Feed 800 mm/min

Hardened Steel 50-60HRC  -  RPM 24000 Feed 480 mm/min

High Hardened Steel 60-68HRC  -  RPM 16000 Feed 320 mm/min



SKFN020/0665040050
21 Items

Data sheet

Cutting surface diameter
2mm
Shank diameter
4mm
Cutting surface length
6 mm
Total length
50mm
Hardness
HRC 65
Protective layer
TiAlN F-NaNo
Number of blades
4
Tool type
Front shank
Tool material
Carbide
Suitable for the material
Steel up to hardness HRC65
