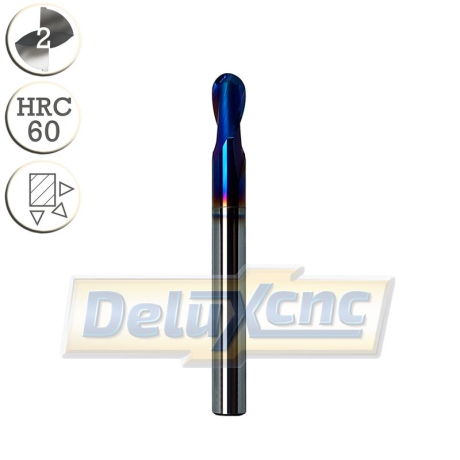

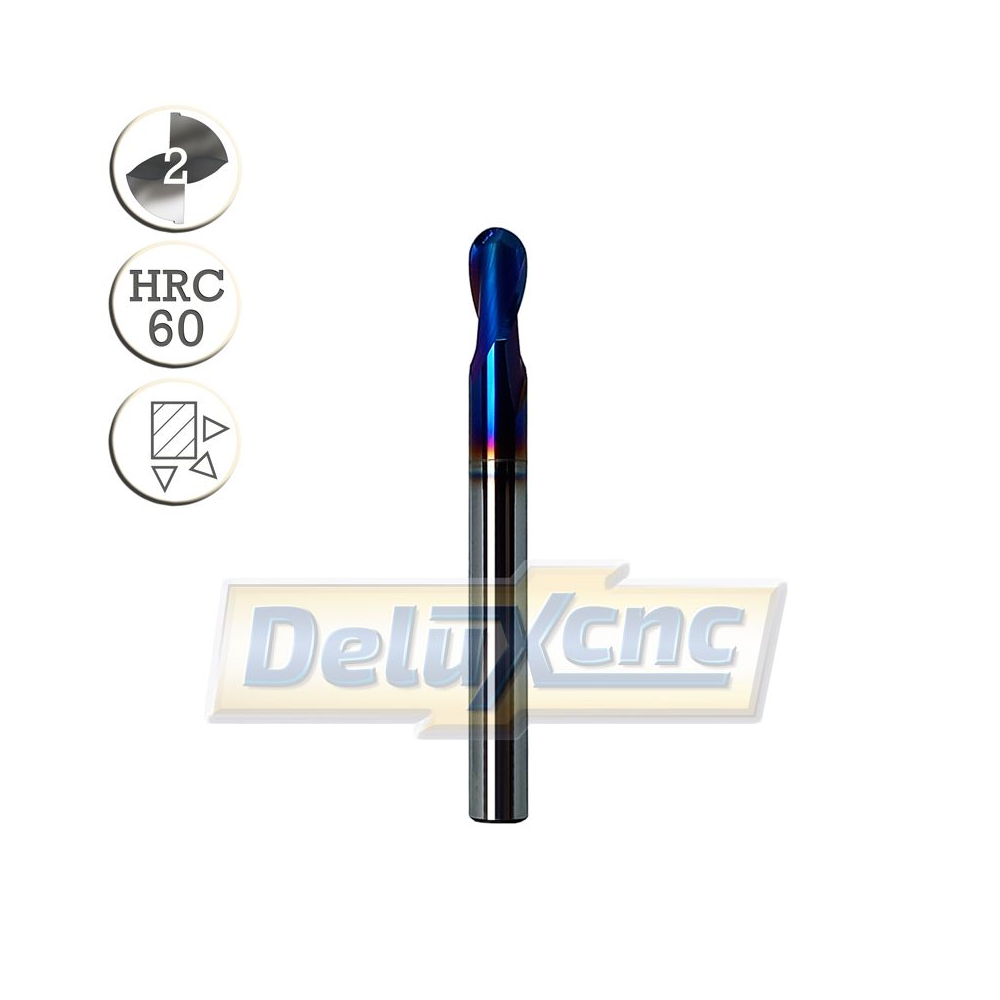

Two flute ball nose carbide End Mill Φ5mm F-Nano blue

Specification:

Shank diameter 5 mm

Cutting surface diameter 5 mm

Length of cutting surface 13 mm

Overall length 50 mm

Hardness: HRC62

Protective coating: F-Nano

€11.69
Tax included €9.50 bez DPH
Delivery within 1-2 days
Quantity
In stock

Goods are just viewed by 1 people

Description:

2 Flutes TiAlN F-NaNo Blue Coated Ultra Micro Grain Carbide for high hardened steels up to HRC62.

Two super sharp blades for standard cutting with high chip removal speed.

The F-Nano coating increases the stability of the cut and extends tool life during cutting.

Spiral design significantly improves cutting speed and creates a smooth and fine cutting surface.

Pre Hardened and Hardened Steel 40-50HRC  -  RPM 40000 Feed 320 mm/min

Hardened Steel 50-60HRC  -  RPM 40000 Feed 320 mm/min

High Hardened Steel 60-62HRC  -  RPM 32000 Feed 260 mm/min



DKGFN050/1362050050
8 Items

Data sheet

Cutting surface diameter
5mm
Shank diameter
5mm
Cutting surface length
13 mm
Total length
50mm
Hardness
HRC 62
Protective layer
TiAlN F-NaNo
Number of blades
2
Tool type
Spherical
Tool material
Carbide
Suitable for the material
Steel to hardness HRC62
