Specifications:
Shank diameter 4 mm
Cutting edge diameter 3 mm
Cutting edge length 8 mm
Overall length 50 mm

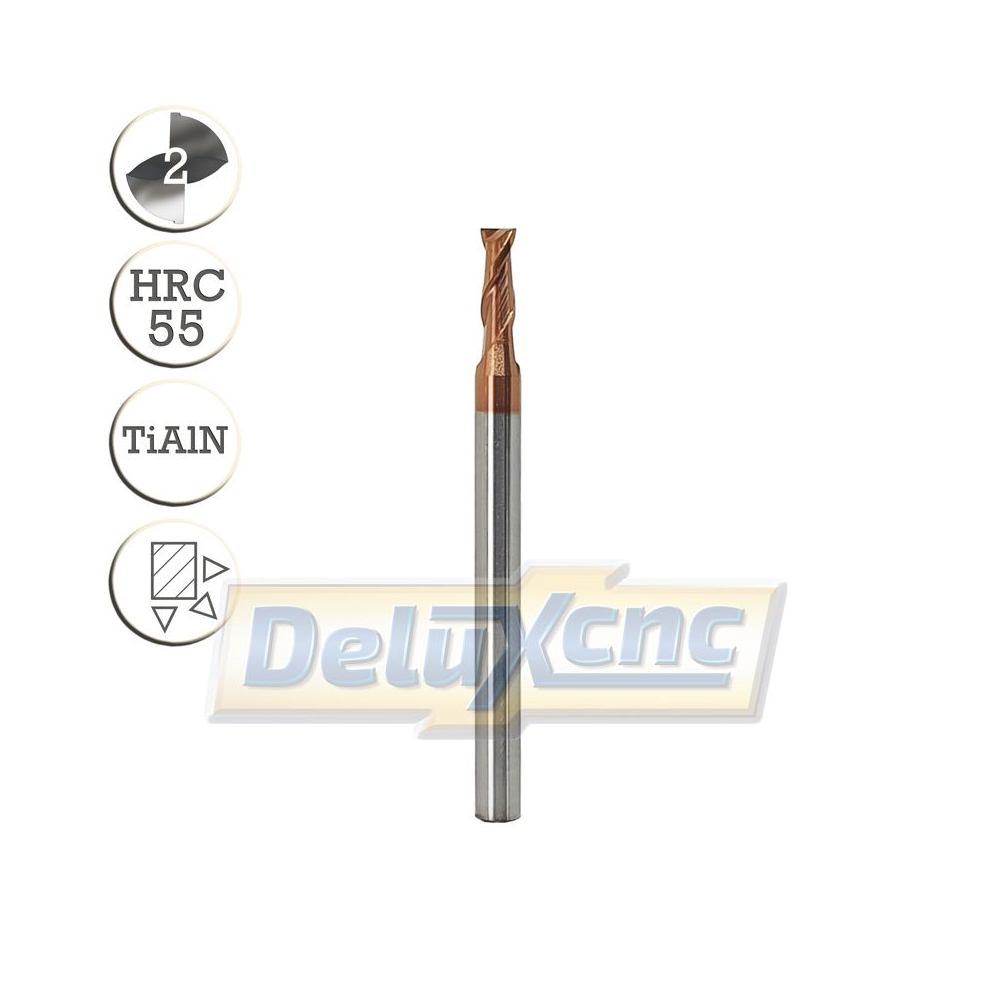

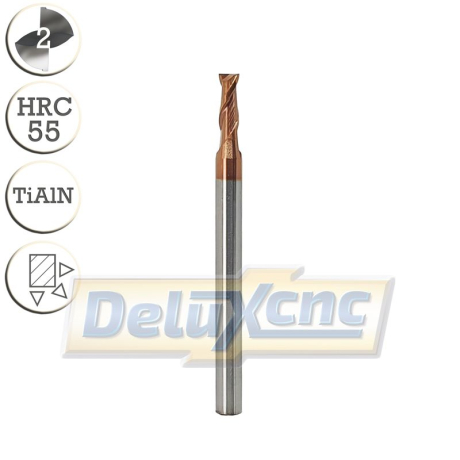

2 Flutes solid carbide mill cutter slot drill
Two flutes for standard cutting and high rate of chip removal
With TiAIN coated for increasing cutting stability, edge retention and up to three times longer cutting life
Spiral design, greatly improve the cutting speed, makes a smooth and delicate cutting surface
High precision super sharp, wear-resistant, durable
Used for semi-finishing operations, do slotting, profiling & plunging operations
Suitable for: Steel, Cast Iron and General Use on Materials up to 55HRC,
Cast Iron, Nodular Cast Iron - RPM 14000 Feed 545 mm/min
Carbon Steel, Alloy Steel -750N/Mm2 - RPM 14000 Feed 545 mm/min
Carbon Steel, Alloy Steel 40HRC - RPM 10600 Feed 420 mm/min
Pre Hardened Quenched and Tempered Steel 50HRC - RPM 8500 Feed 330 mm/min
Stainless Steel - RPM 7500 Feed 120 mm/min
Data sheet
Specification: Shank diameter 4 mm Cutting surface diameter 3 mm Length of cutting surface 8 mm...
Specifications: Shank diameter 4 mm Cutting edge diameter 3 mm Cutting edge length 8 mm...
Specifications: Shank diameter 3,175 mm 1/8 " Cutting diameter 3.175 mm Cutting length 7 mm...
Specifications:
Shank diameter 4 mm
Cutting edge diameter 3 mm
Cutting edge length 8 mm
Overall length 50 mm
