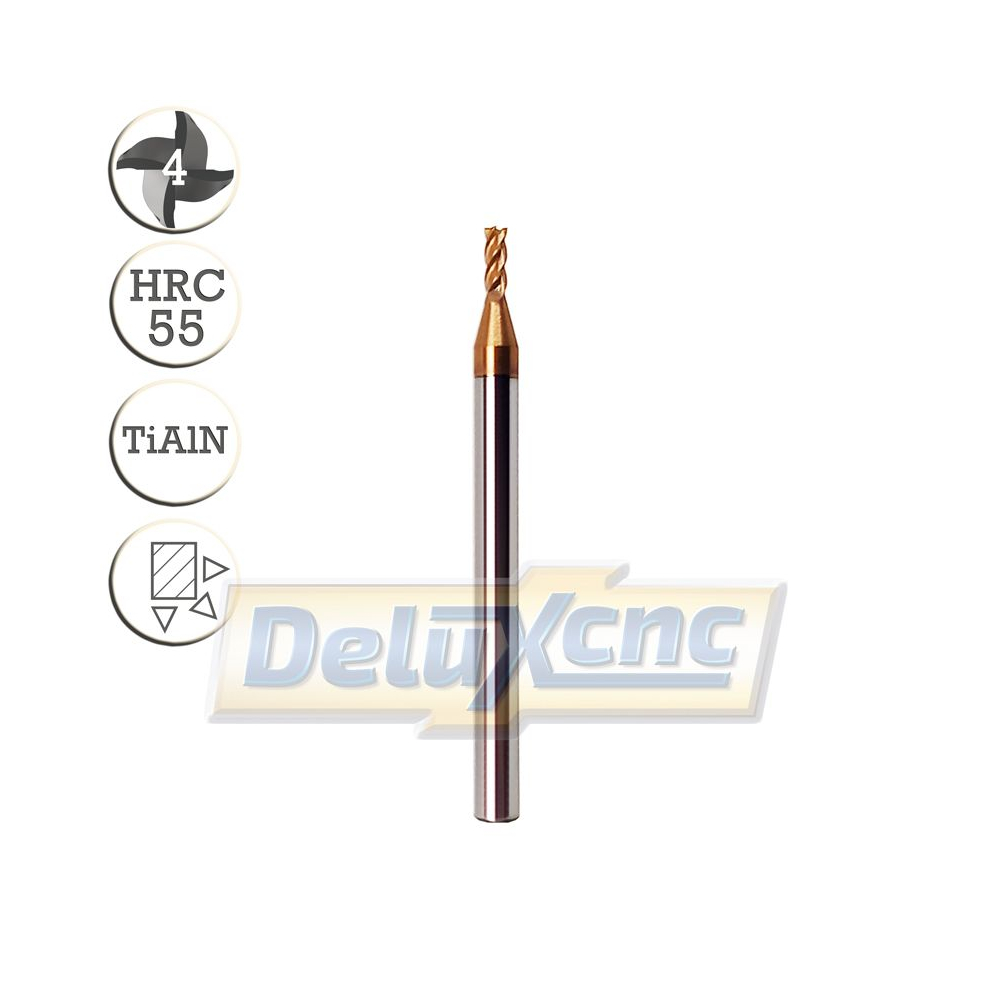

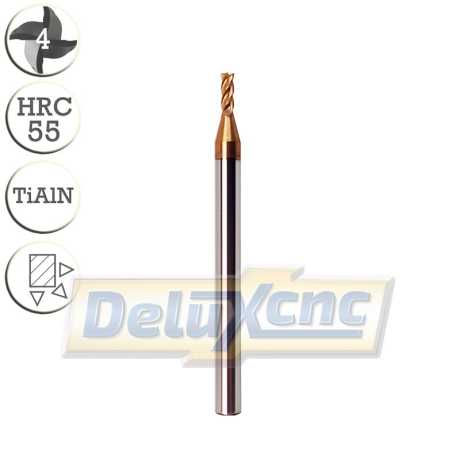

Four flute carbide End Mill TiAlN Φ2,5mm
Specification:
Shank diameter 4 mm
Cutting surface diameter 2,5 mm
Length of cutting surface 7 mm
Overall length 50 mm
Hardness: HRC55
Protective coating: TiAlN
Four-flute carbide milling cutter with TiAIN protective coating for general use. Suitable for iron and steel up to HRC55.
Four super sharp cutting edges for standard cutting with high chip removal rate.
TiAIN coating increases cutting stability and extends tool life when cutting.
Spiral design significantly improves cutting speed and creates a smooth and fine cutting surface.
Cutting speeds: Mild steel - 12700rpm 305mm/min, Stainless steel - 7160rpm 140mm/min
127-SKFT025/0755040050
10 Items
Data sheet
- Cutting surface diameter
- 2.5mm
- Shank diameter
- 4mm
- Cutting surface length
- 7 mm
- Total length
- 50mm
- Hardness
- HRC 55
- Protective layer
- TiAlN
- Number of blades
- 4
- Tool type
- Front shank
- Tool material
- Carbide
