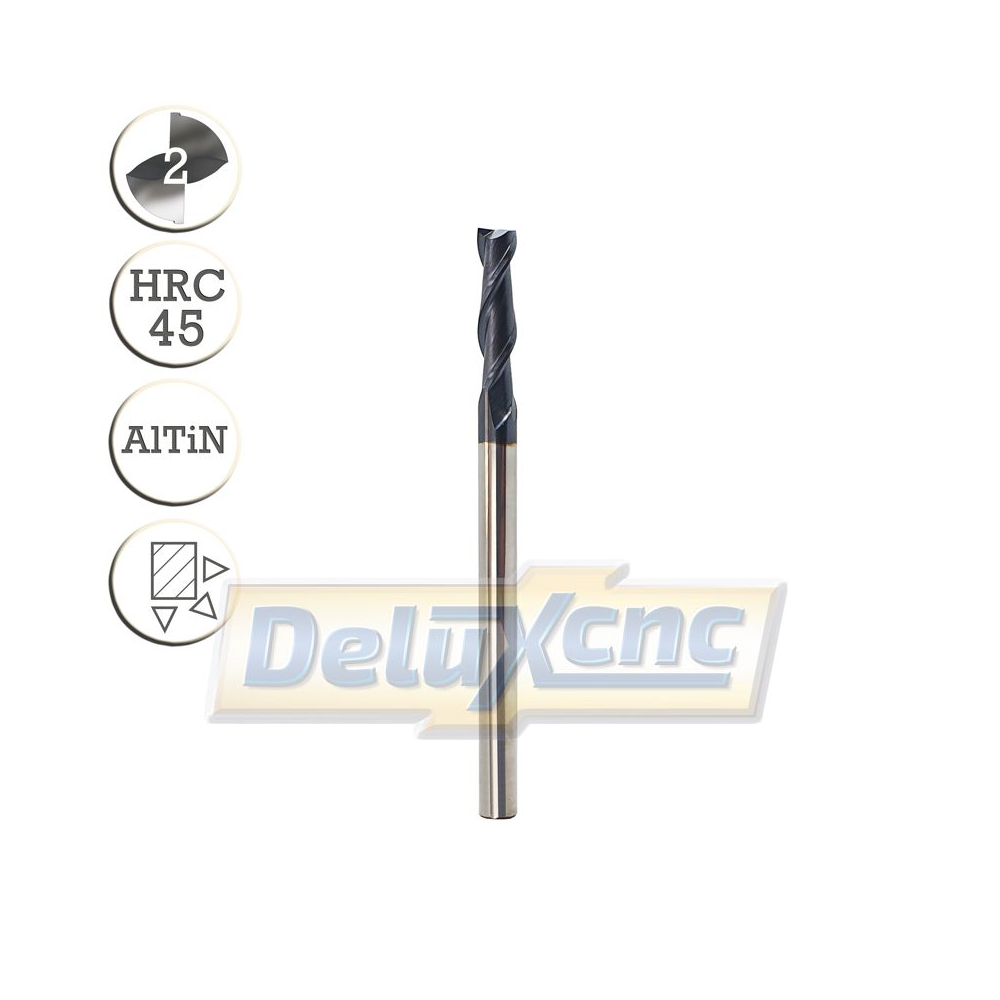

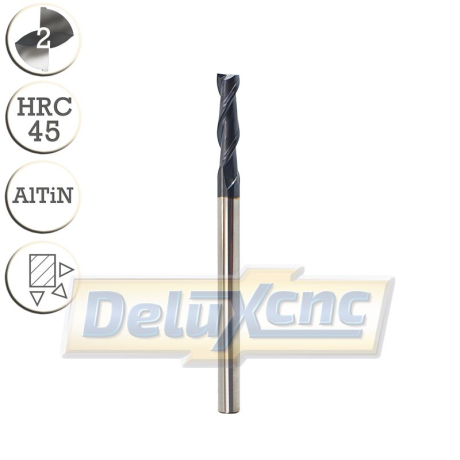

Two flutes carbide end mill cutter AlTiN coated 5/15 mm long
Specifications: Shank diameter 5 mm Cutting edge diameter 5 mm Cutting edge length 15 mm...
|
This eshop uses cookies to provide services, customize your ads, and analyze your traffic. Více informací |
Přijmout všechny cookies Personalizovat |
| Přijmout zvolené cookies |
New products
Specifications:
Shank diameter 5 mm
Cutting edge diameter 5 mm
Cutting edge length 15 mm
Overall length 75mm
2 Flutes solid carbide mill cutter slot drill
Two flutes for standard cutting and high rate of chip removal
With TiAlN coated for increasing cutting stability, edge retention and up to three times longer cutting life
Spiral design, greatly improve the cutting speed, makes a smooth and delicate cutting surface
High precision super sharp, wear-resistant, durable
Used for semi-finishing operations, do slotting, profiling & plunging operations
Suitable for: Steel, Cast Iron and General Use on Materials up to 55HRC,
Cast Iron, Nodular Cast Iron - RPM 8200 Feed 485 mm/min
Carbon Steel, Alloy Steel -750N/Mm2 - RPM 8200 Feed 485 mm/min
Carbon Steel, Alloy Steel 40HRC - RPM 6400 Feed 370 mm/min
Pre Hardened Quenched and Tempered Steel 50HRC - RPM 5000 Feed 295 mm/min
Stainless Steel - RPM 4500 Feed 110 mm/min
Data sheet
Specifications: Shank diameter 5 mm Cutting edge diameter 5 mm Cutting edge length 15 mm...
Your review appreciation cannot be sent
Report comment
Report sent
Your report cannot be sent
Write your review
Review sent
Your review cannot be sent
Specifications:
Shank diameter 5 mm
Cutting edge diameter 5 mm
Cutting edge length 15 mm
Overall length 75mm
