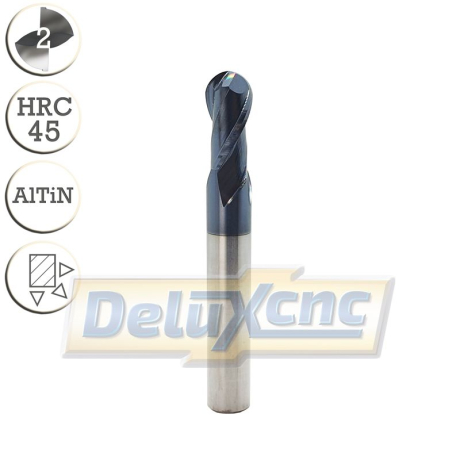

Two flute carbide Ball nose end mill AlTiN R5 mm
Specifications:
Shank diameter 10 mm
Cutting diameter 10 mm
Cutting length 20 mm
Overall length 75 mm
2 Flutes solid carbide ball nose end mill cutter
Two flutes for standard cutting and high rate of chip removal
With AlTiN coated for increasing cutting stability, edge retention and up to three times longer cutting life
Spiral design, greatly improve the cutting speed, makes a smooth and delicate cutting surface
High precision super sharp, wear-resistant, durable
Used for semi-finishing operations, do slotting, profiling & plunging operations
Suitable for: Steel, Cast Iron and General Use on Materials up to 45HRC,
Cast Iron, Nodular Cast Iron - RPM 4800 Feed 1200 mm/min
Carbon Steel, Alloy Steel -750N/Mm2 - RPM 4800 Feed 1200 mm/min
Carbon Steel, Alloy Steel 30HRC - RPM 3800 Feed 900 mm/min
Pre Hardened Quenched and Tempered Steel 40HRC - RPM 3200 Feed 650 mm/min
Data sheet
- Cutting edge diameter
- 10 mm
- Shank diameter
- 10 mm
- Cutting edge length
- 20 mm
- Total length
- 50 mm
- Hardness
- HRC 45
- Protective coating
- AlTiN
- Number of flutes
- 2
- Type of end mill
- Ball nose end mill
- Tool material
- Solid carbide
