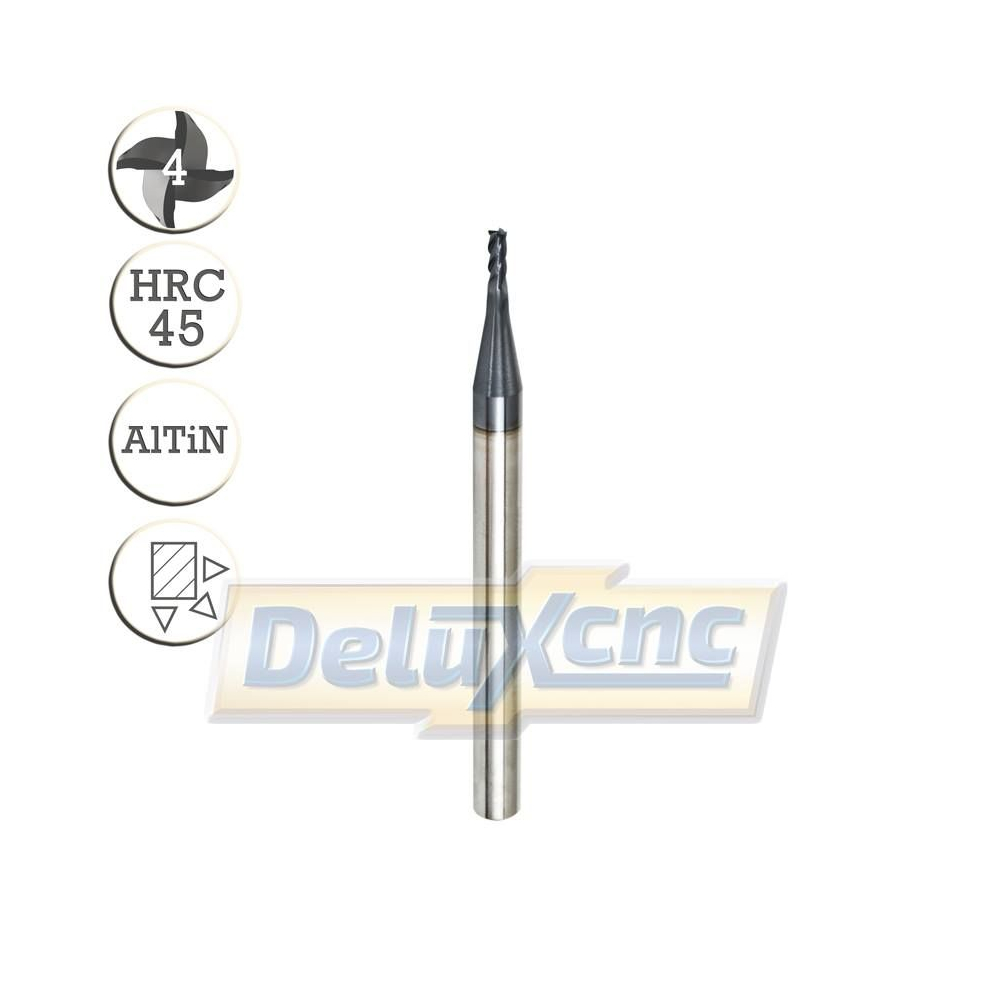

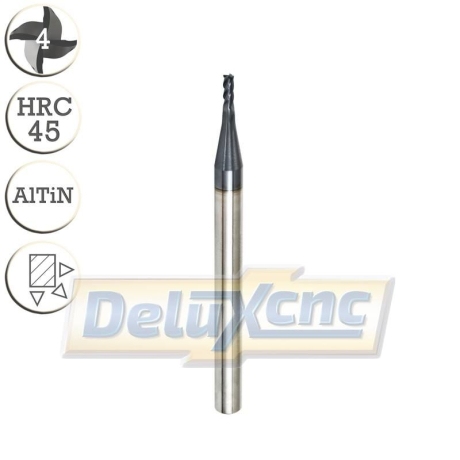

Four flute carbide End Mill 1/3 mm AlTiN
Specification:
Shank diameter 4 mm
Cutting surface diameter 1 mm
Length of cutting surface 3 mm
Overall length 50 mm
Hardness: HRC45
Protective coating: AlTiN
Description:
Four-flute carbide end-mill with TiAIN protective coating for general use. Suitable for iron, steel to hardness HRC45.
Four super sharp blades for standard cutting with high chip removal speed.
The AlTiN coating increases the stability of the cut and extends tool life during cutting.
Spiral design significantly improves cutting speed and creates a smooth and fine cutting surface.
Cutting speeds: Cast iron, Carbon steel 750N / Mm2 - 20000ot / min 250mm / min, Carbon steel HRC 30 - 20000ot / min 200mm / min, Hardened steel HRC 40 - 20000ot / min 200mm / min
Data sheet
- Cutting surface diameter
- 1mm
- Shank diameter
- 4mm
- Cutting surface length
- 3mm
- Total length
- 50mm
- Hardness
- HRC 45
- Protective layer
- AlTiN
- Number of blades
- 4
- Tool type
- Front shank
- Tool material
- Carbide
