Specifications:
Shank diameter 4 mm
Cutting diameter 1 mm
Cutting length 2 mm
Overall length 50 mm

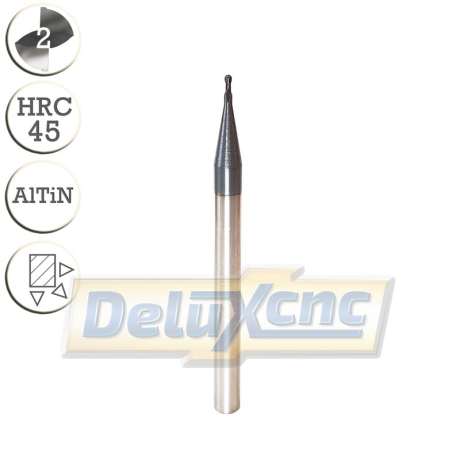

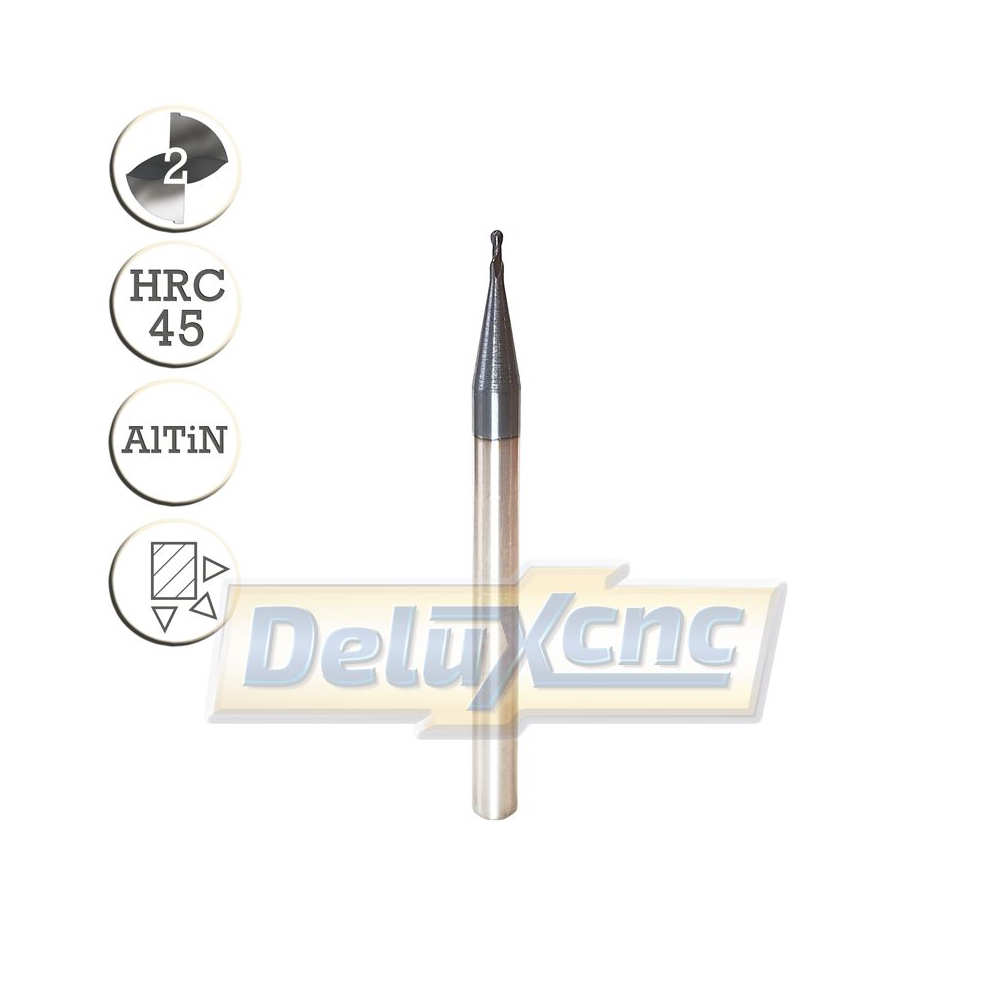

2 Flutes solid carbide mill cutter slot drill
Two flutes for standard cutting and high rate of chip removal
With TiAIN coated for increasing cutting stability, edge retention and up to three times longer cutting life
Spiral design, greatly improve the cutting speed, makes a smooth and delicate cutting surface
High precision super sharp, wear-resistant, durable
Used for semi-finishing operations, do slotting, profiling & plunging operations
Suitable for: Steel, Cast Iron and General Use on Materials up to 45HRC,
Cast Iron, Nodular Cast Iron - RPM 40000 Feed 800 mm/min
Carbon Steel, Alloy Steel -750N/Mm2 - RPM 40000 Feed 800 mm/min
Carbon Steel, Alloy Steel 30HRC - RPM 38000 Feed 700 mm/min
Pre Hardened Quenched and Tempered Steel 40HRC - RPM 32000 Feed 320 mm/min
