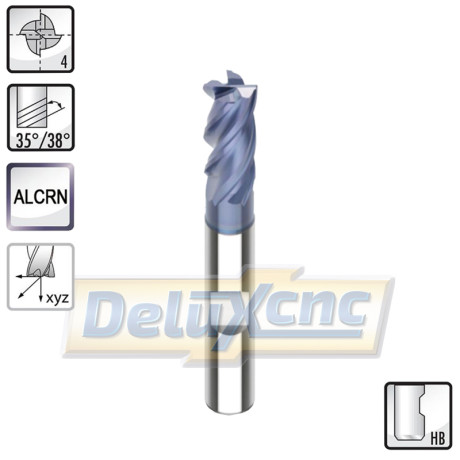

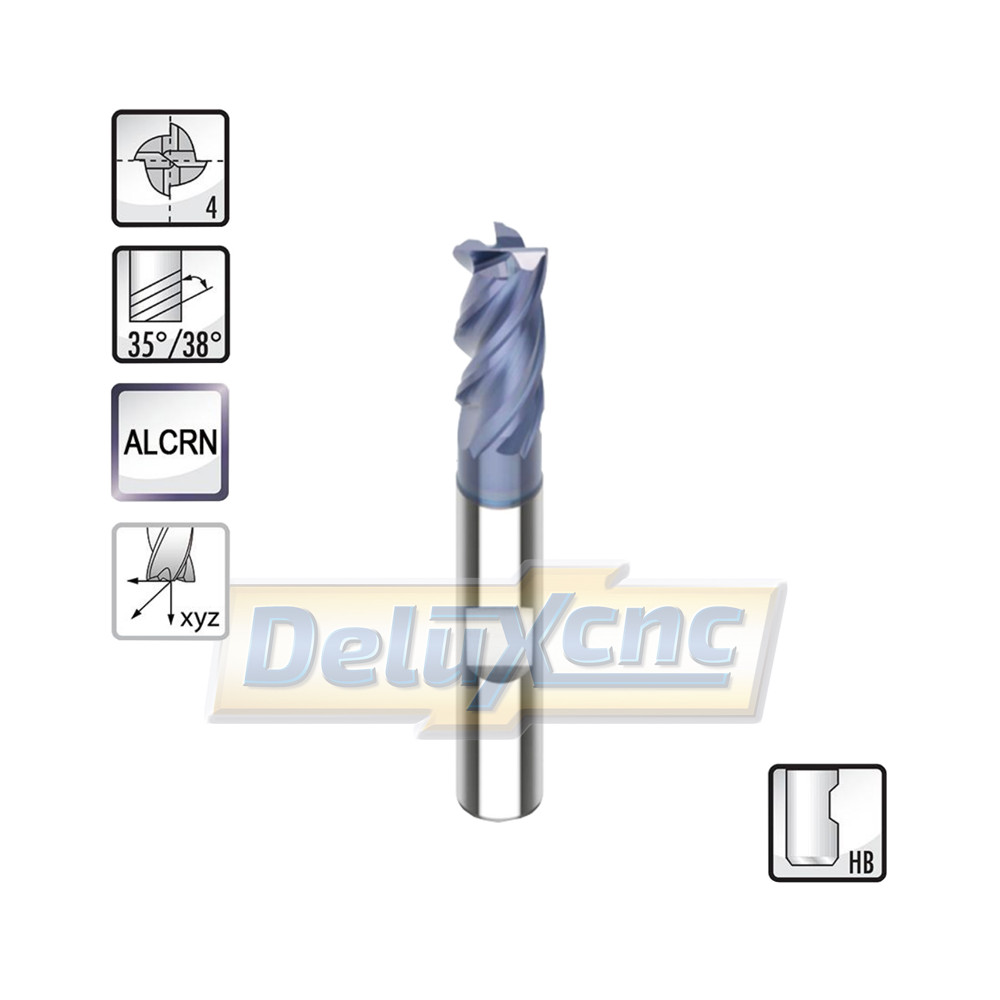

Fourflute solid carbide milling cutter Φ3mm DIN6535 HB
Specification:
Shank diameter 6 mm
Cutting surface diameter 3 mm
Cutting surface length 8 mm
Total length 57 mm
Hardness: HRC45
Protective layer: ALCRN
Recommended cutting parameters
Set the machining parameters according to the tool shank clamping, fixtures and machine rigidity.
It is recommended to use coolant for machining stainless steel and titanium alloys.
Main materials - carbon / alloy steel:
(A3, 45 steel, 20Cr, 40Cr, 20CrMo, 35CrMo, 42CrMo, 20CrMnTi, 35CrMoA, etc.)
Other materials - stainless steel / titanium alloy:
(201, 202, 301, 304, 316, 430, 630, TC4, TC6, etc.)
300-SVHMF030/084506057
5 Items
Data sheet
- Cutting surface diameter
- 3mm
- Shank diameter
- 6 mm
- Cutting surface length
- 8mm
- Total length
- 58 mm
- Hardness
- HRC 45
- Protective layer
- ALCRN
- Number of blades
- 4
- Tool type
- Front shank
- Tool material
- Carbide
- Suitable for the material
- Steel up to hardness HRC45
