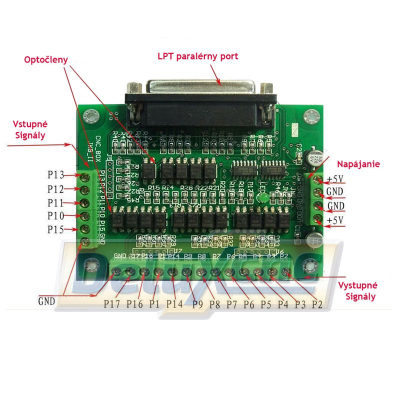

CNC 6 Axis DB25 Breakout Board Interface Adapter MACH3
Package Included:
1 x CNC 6 axis Breakout Board interface adapter
6 axis Breakout board
Compatible: KCAM4 MACH2/3 EMC2
Built in DB25 male connector.
DB25 Output Pin:P1,P2,P3,P4,P5,P6,P7,P8,P9,P14,P16,P17.
DB25 Input Pin: P10,P11,P12,P13,P15.
DB25 GND Pin: P18-P25.
Power supply: +5V DC.
Built in C-class Optical-coupler.
High quality with Surface-mount Tech.
General in the software
P2 P3 is set to X-axis for the X-axis pulse
P4 P5 is set to Y-axis, Y axis pulse
P6 P7 is set to Z-axis Z-axis pulse
The other can be set to A B C axis
A-axis pulse P8 P9 is set as the A axis
P14 is set to B-axis B-axis pulse P1
P16 P17 is set to C-axis, C axis pulse
Can also be set to the spindle control signal electrical permit
Input interface for the P10 P11 P12 P13 P15
6ORDKMLPT
