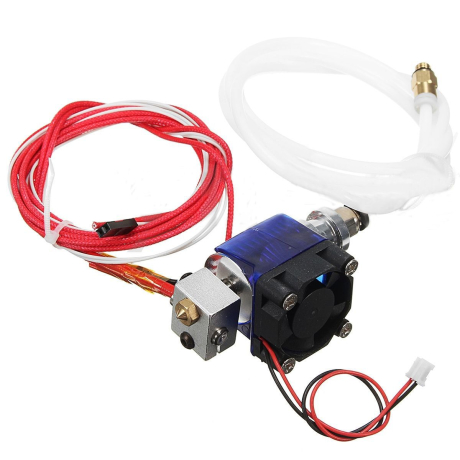

3D Extruder Print J-Head bowden 0,4mm/1,75mm

Extruder specification:

Nozzle flow rate: about 24cc / h

Movement shaft speed: 10-100mm/s

Normal working temperature: 190°c-250°c

The maximum temperature : 280 °c

Extrusion nozzle : 0.2mm, 0.3 mm, 0.4 mm

Thermistor: 12V 3950 100k ntc , accuracy 1%

The cooling fan operating voltage: 12V DC

Heating rods: 6mm, 12V 40W

Print Material: ABS, PLA

compatible with 1.75mm filament

Motor specification:

Model: 42HS40

Wire Length: 20cm

Stepping angle：1.8°

Phase Current: 1.7A

Phase Resistance: 2.5Ω

Phase Inductance: 4.2mH

Net weight: 402g
