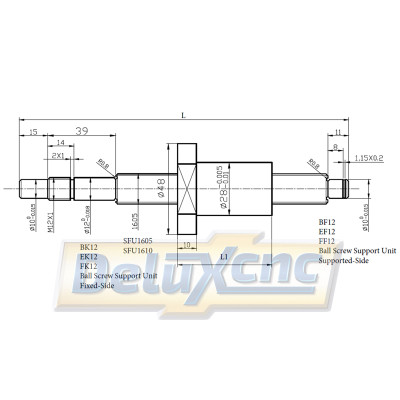

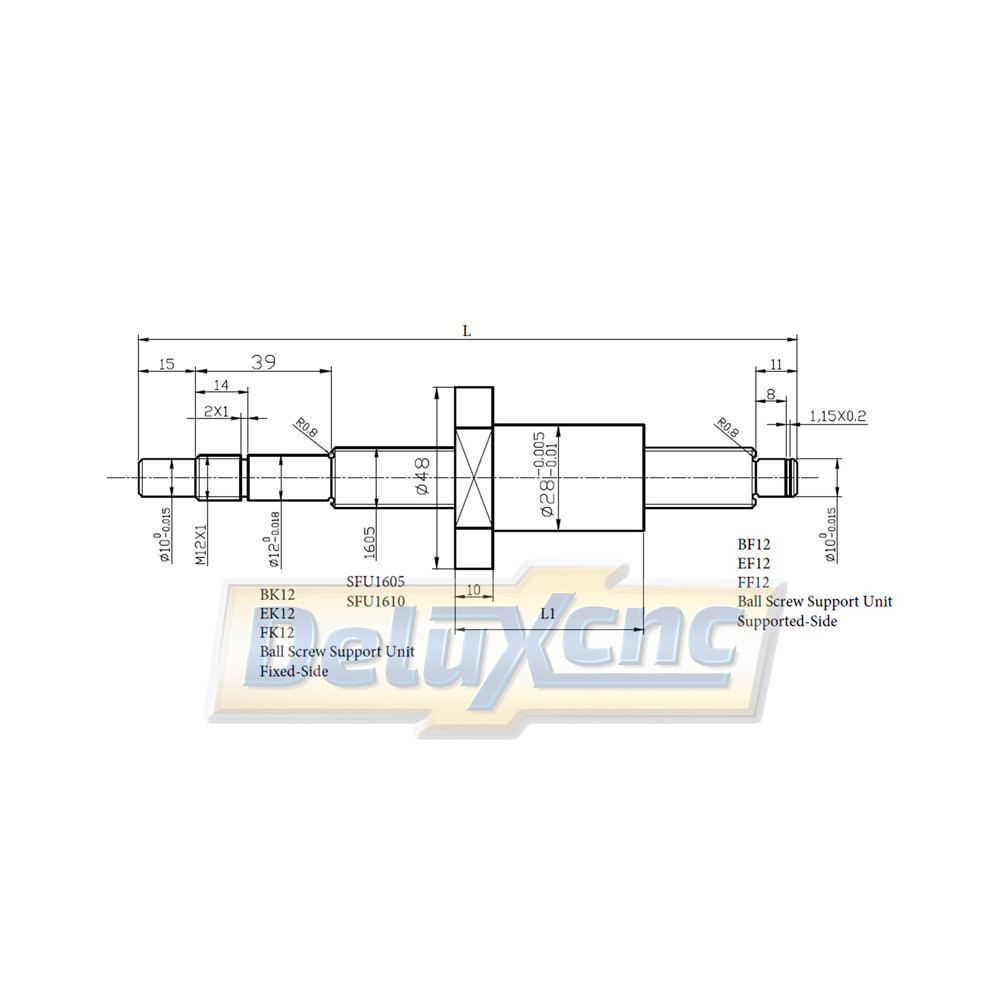

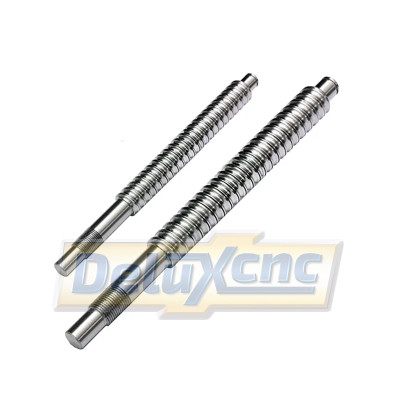

Ball screw SFU1605 + end machining

Standard ball screw with class C7 accuracy, customized required length and end machining option according to customer's choice.

Select the value range of "Total screw length" and then enter the exact value of "Required total length in mm"

Screw with a diameter of 16 mm and a pitch of 5 mm. With the option of choosing precisely machined ends from both sides.

Suitable for smaller CNC machines and other applications where more emphasis is placed on accuracy.

Attention! The screw is supplied without a nut (when purchasing a ball screw, it is recommended to purchase a nut as well, and we will mount it on the ball screw to match the tolerance.)

In the case of selection without end processing, the supplied screw will be raw rust with a tolerance of 0 to +3 mm.

In the case of selection with end machining, the screw will be supplied with a tolerance of +-1mm

Accuracy class C7: +-0.05/300 (mm) - flatness 0.2mm / 300 mm
